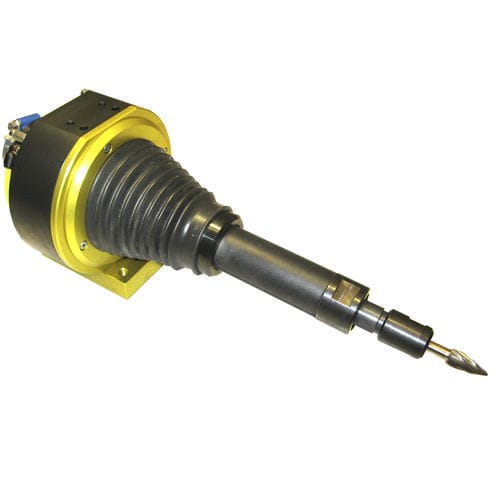

Milling spindle Flexicut 1020deburringfor robotsair-driven
Add to favorites
Compare this product
Characteristics
- Function
- milling, deburring
- Other characteristics
- for robots, air-driven
- Rotational speed
Max.: 25,000 rpm
(157,079.63 rad.min-1)Min.: 20,000 rpm
(125,663.71 rad.min-1)- Diameter
Max.: 8 mm
(0.3 in)Min.: 0 mm
(0 in)
Description
The milling tool FLEXICUT 1020 can be used for the economical deburring and deflashing of metallic as well as nonmetallic material. The spindle is freely compliable in all directions. The pressure against the part edge can be set from the robot program.
Article-No.
3164.210
Power
1.3 kW (1.74 hp)
Idling speed
25'000 rpm
Rated speed
20'000 rpm
Compliance radial in all directions
± 3.2° / ± 16 mm (at collet)
Compliance torque
0 ... 15 Nm at Connection 1; 5 ... 30 Nm at Connection 1 and 2
Compliance force
109 N (24.5 lbs) at 6 bar (87 psi) (at collet)
Feed forward rate
10 - 300 mm/sec.
Air consumption
28 l/s (59.3 cfm)
Collet
Ø 8 mm, 5/16
Weight
7.3 kg (16.1 lb)
