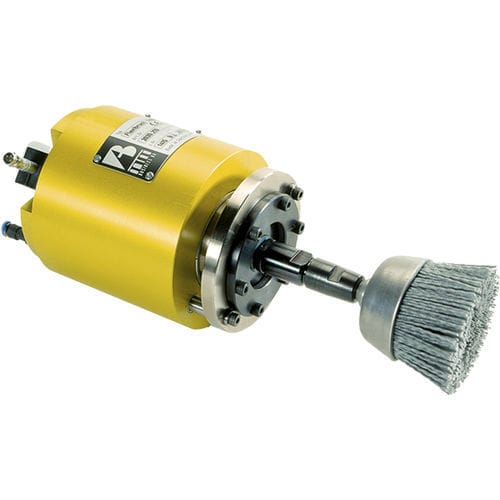

Deburring spindle Flexibrush 100

machiningbrushingsurface treatment

The axial brushing tool FLEXIBRUSH SERIES 100 can be used for deburring after machining, rounding of sharp edges (particularly in badly accessible areas) as well as for surface treatment. The brushing spindle is axially compliant while the necessary pressure is monitored by program control. The wear of the brush is monitored by a sensor and compensated by program control. Versions with reversible motors are available. FLEXIBRUSH 125 128 155 158 170 181 185 186 Article-No. without compensation springs (w) 3030.215 3030.218 3030.216 3030.219 3030.240 3030.251 3030.255 3030.256 Article-No. with compensation springs (w) 3030.315 3030.318 3030.316 3030.319 3030.340 3030.351 3030.355 3030.356 Power 390 W 240 W 390 W 240 W 760 W 600 W 760 W 760 W Idling speed (rpm) 5'600 3'840 (r) 3'100 2'090 (r) 7'000 15'000 7'000 7'000 Rated speed (rpm) 2'600 1'960 (r) 1'460 1'090 (r) 5'600 8'000 5'600 5'600 Compliance movement 12 mm (axial) 12 mm (axial) 12 mm (axial) 12 mm (axial) 12 mm (axial) 12 mm (axial) 12 mm (axial) 12 mm (axial) Compliance force at 6 bar approx. 60 N approx. 60 N approx. 60 N approx. 60 N approx. 60 N approx. 60 N approx. 60 N approx. 60 N Feed forward rate (mm/s) 5 - 100 5 - 100 5 - 100 5 - 100 10 - 200 10 - 200 10 - 200 10 - 200 Air consumption 8.3 l/s 8.3 l/s 8.3 l/s 8.3 l/s 18.9 l/s 17.5 l/s 18.9 l/s 18.9 l/s Motor shaft Ø 12x31.5 Ø 12x31.5 Ø 16x40 Ø 12x31.5 Collet Ø 6 mm Ø 6 mm Ø 6 mm Ø 6 mm Weight 3.5 kg 3.7 kg 3.5 kg 3.7 kg 4.9 kg 3.8 kg 4.2 kg 4.1 kg
