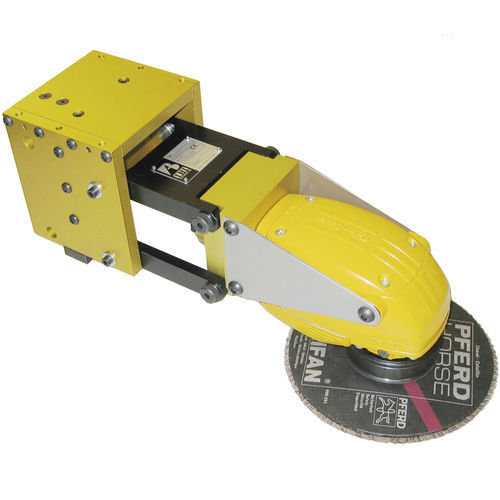

Deburring portable grinder Angle-Grinder 400

pneumaticanglefor robots

The angle grinders ANGLE-GRINDER Series 200 can be used for grinding and deflashing with any type of surface grinding wheels, on almost all material. The compliance is effected by a parallelogram mechanism that assures that the movement is parallel and that the tool angle does not change. Type ANGLE-GRINDER 410 ANGLE-GRINDER 420 Article-No. 3077.211 3077.221 Powered 4.5 kW 4.5 kW Idling speed 8'500 rpm 6'600 rpm Compliance movement 34 mm (axial) 34 mm (axial) Compliance force (F)* with 2 Cylinder at 6 bar 123 N 114.4 N Feed forward rate 50 - 200 mm/s 50 - 200 mm/s Air consumption 60 l/s 60 l/s Wheel centring Ø 7/8 Ø 7/8 Wheel diameter up to 180 mm up to 230 mm Weight 8.4 kg 8.4 kg
