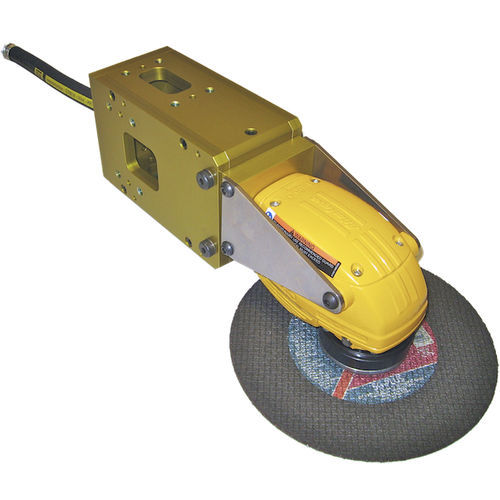

Pneumatic cutt off grinder Angle-Cutter 400

for robotsangle

The cutting tools ANGLE-CUTTER Series 400 can be used for cutting-off on almost all material. This tool will be used especially for the removing of runner heads and raisers on iron - and gray casting parts. Type ANGLE-CUTTER 410 ANGLE-CUTTER 415 ANGLE-CUTTER 420 ANGLE-CUTTER 425 Article-No. 3074.210 3074.215 3074.220 3074.225 Powered 4.5 kW 4.5 kW 4.5 kW 4.5 kW Idling speed 8'500 rpm 8'500 rpm 6'600 rpm 6'600 rpm Cutting force monitoring (*) Sensor Sensor Max. Cutting force at 6 bar (*) 188 N 188 N Air consumption 60 l/s 60 l/s 60 l/s 60 l/s Wheel centring Ø 7/8 Ø 7/8 Ø 7/8 Ø 7/8 Wheel diameter up to 180 mm up to 180 mm up to 230 mm up to 230 mm Weight 8 kg 9.8 kg 8 kg 9.8 kg
