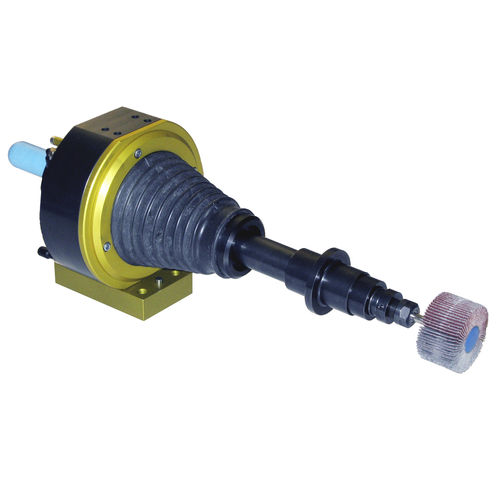

Polishing spindle Flexfinisher 200 series

finishingfor grindingradial

The finishing tools FLEXFINISHER can be used for surface finishing with radial wheels such as grinding and polishing of almost any material. The spindle is radially compliable while the necessary pressure is monitored by program control. Type FLEXFINISHER 210 FLEXFINISHER 215 FLEXFINISHER 220 FLEXFINISHER 225 Article-No. 3180.210 3180.215 3180.220 3180.225 Power 840 W 840 W 840 W 620 W Idling speed 21'000 rpm 6'700 rpm 4'200 rpm 2'550 rpm Rated speed 10'800 rpm 3'300 rpm 2'100 rpm 1'280 rpm Compliance (radial) ± 3.2° ± 16 mm an Spannzange ± 3.2° ± 16 mm an Spannzange ± 3.2° ± 16 mm an Spannzange ± 3.2° ± 16 mm an Spannzange Compliance torque with connection 1 0 ... 15 Nm 0 ... 15 Nm 0 ... 15 Nm 0 ... 15 Nm Compliance torque with connection 1 and 2 5 ... 30 Nm 5 ... 30 Nm 5 ... 30 Nm 5 ... 30 Nm Max. Compliance force at 6 bar approx. 109 N approx. 109 N approx. 109 N approx. 109 N Feed forward rate 50 - 200 mm/s 50 - 200 mm/s 50 - 200 mm/s 50 - 200 mm/s Air consumption 17 l/s 17 l/s 17 l/s 17 l/s Moto shaft Ø16 x 40 mm Ø16 x 40 mm Ø16 x 40 mm Ø16 x 40 mm Weight 6.7 kg 6.7 kg 6.7 kg 6.7 kg
