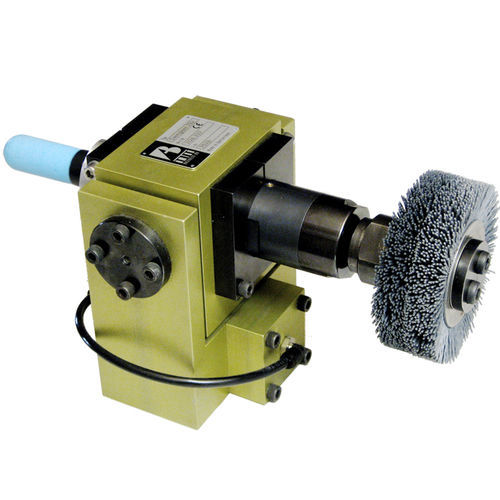

Deburring spindle Swingtool 200

machiningbrushingfor grinding

The radial grinding tool SWINGTOOL SERIES 200 can be used for deburring after machining, rounding of sharp edges (particularly in badly accessible areas) as well as for light deflashing. The spindle is radially compliant while the necessary pressure is monitored by program control. SWINGTOOL 220 222 225 230 232 Article-No. 3126.220 3126.222 3126.225 3126.230 3126.232 Power 840 W 840 W 840 W 620 W 620 W Idling speed 2'500 rpm 4'200 rpm 6'700 rpm 3'350 rpm (r) 5'250 rpm (r) Rated speed 1'280 rpm 2'100 rpm 3'300 rpm 1'700 rpm (r) 2'650 rpm (r) Compliance (pendulous) ±3.8° ±3.8° ±3.8° ±3.8° ±3.8° Compliance torque at 6 bar 10.5 Nm 10.5 Nm 10.5 Nm 10.5 Nm 10.5 Nm Feed forward rate 20 - 200 mm/s 20 - 200 mm/s 20 - 200 mm/s 20 - 200 mm/s 20 - 200 mm/s Air consumption 17 l/s 17 l/s 17 l/s 14.5 l/s 14.5 l/s Motor shaft Ø16j6 x 40 Ø16j6 x 40 Ø16j6 x 40 Ø16j6 x 40 Ø16j6 x 40 Weight 7.5 kg 7.5 kg 7.5 kg 7.5 kg 7.5 kg
