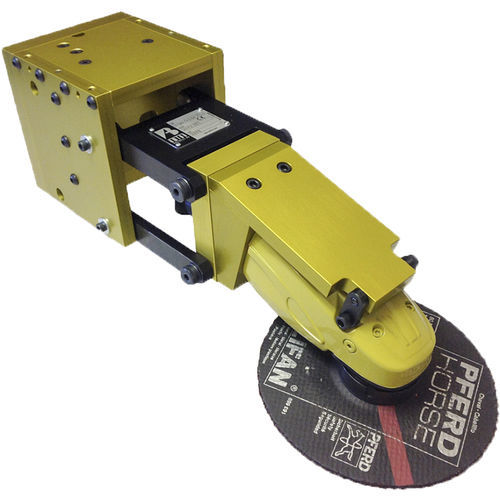

Pneumatic portable grinder Angle-Grinder 200

angleindustrialfor robots

The angle grinders ANGLE-GRINDER Series 200 can be used for grinding and deflashing with any type of surface grinding wheels, on almost all material. The compliance is effected by a parallelogram mechanism that assures that the movement is parallel and that the tool angle does not change. Type ANGLE-GRINDER 251 ANGLE-GRINDER 261 Article-No. 3072.251 3072.261 Powered 2.5 kW 2.5 kW Idling speed 12'000 rpm 8'500 rpm Compliance movement 34 mm (axial) 34 mm (axial) Compliance force (F)* at 6 bar 140 N 140 N Feed forward rate 50 - 200 mm/s 50 - 200 mm/s Air consumption 32 l/s 32 l/s Wheel centring Ø 7/8 Ø 7/8 Wheel diameter up to 125 mm up to 180 mm Weight 6.7 kg 6.7 kg
