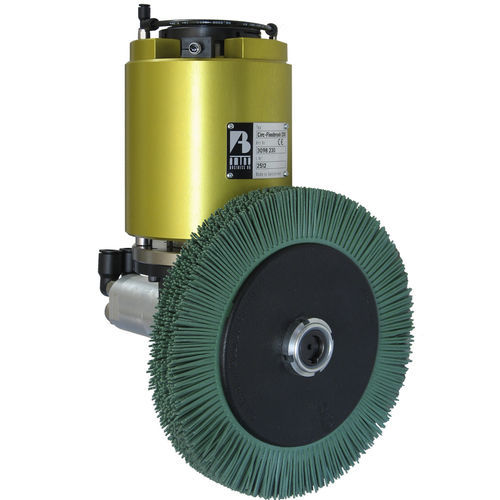

Deburring spindle Circ-Flexibrush 200

machiningbrushingradial

The radial brushing tool CIRC-FLEXIBRUSH SERIES 200 can be used for deburring of large parts after machining, rounding of sharp edges (particularly in badly accessible areas) as well as for light deflashing. The brushing spindle is radially compliant while the necessary pressure is monitored by program control. The wear of the brush is monitored by a sensor and compensated by program control. Versions with reversible motors are available. CIRC-FLEXIBRUSH 219 222 225 220 230 232 Article-No. without compensation springs (w) 3098.219 3098.222 3098.225 3098.220 3098.230 3098.232 Article-No. with compensation springs (w) 3098.319 3098.322 3098.325 3098.320 3098.330 3098.332 Power 840 W 840 W 840 W 620 W 620 W 620 W Idling speed 2'500 rpm 4'200 rpm 6'700 rpm 2'000 rpm (r) 3'350 rpm (r) 5'250 rpm (r) Rated speed 1'280 rpm 2'100 rpm 3'300 rpm 1'020 rpm (r) 1'700 rpm (r) 2'650 rpm (r) Compliance movement 16mm (axial) 16mm (axial) 16mm (axial) 16mm (axial) 16mm (axial) 16mm (axial) Compliance force at 6 bar approx. 135 N approx. 135 N approx. 135 N approx. 135 N approx. 135 N approx. 135 N Feed forward rate (mm/s) 20 - 200 20 - 200 20 - 200 20 - 200 20 - 200 20 - 200 Air consumption 17 l/s 17 l/s 17 l/s 17 l/s 14.5 l/s 14.5 l/s Motor shaft Ø16j6x40 Ø16j6x40 Ø16j6x40 Ø16j6x40 Ø16j6x40 Ø16j6x40 Weight 6.7 kg 6.7 kg 6.7 kg 6.7 kg 6.7 kg 6.7 kg
