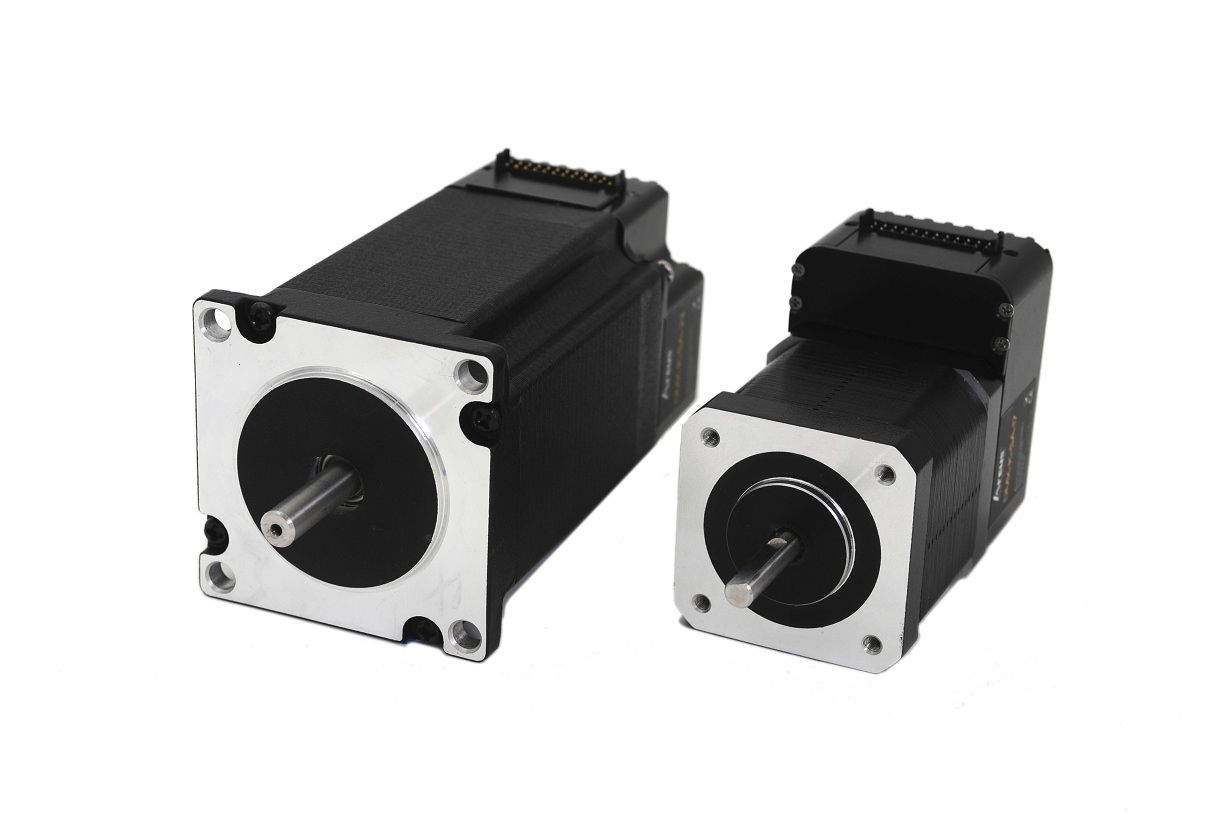

Electric stepper motor with integrated controller
RS-232 / RS-485 | DMX-K-SA
Arcus Technology
Integrated Stepper Motor + Controller + Encoder + Microstep Driver with RS-232/RS-485 Communication
Specifications (NEMA 17/23)
RS-485/232 Communication (9600-115K bps)
Stand-alone control via a BASIC-like programming language
Multi-task programming support
12 to 35 VDC voltage input
16 microstep
100mA to 2.5A current setting
Opto-isolated +Limit, -Limit, and Home inputs
Opto-isolated Digital inputs (6)
Opto-isolated Digital outputs (3)
High speed position capture digital input
Position synchronized digital output
On-the-fly speed change
StepNLoop closed loop algorithm
1000 line incremental encoder (4000 counts/rev with 4x quadrature decoding)
Specifications (NEMA 11)
RS-485 Communication (9600-115K bps)
Stand-alone control via a BASIC-like programming language
12 to 24 VDC voltage input
Full, 1/2, 1/4, 1/16 microstep
100mA to 1.5A current setting
Opto-isolated +Limit, -Limit, and Home inputs (configurable as general purpose)
Opto-isolated Digital outputs (1)
On-the-fly speed change
Max pulse rate of 50K pps
StepNLoop closed loop algorithm
256 line incremental encoder
NEMA 11 size
