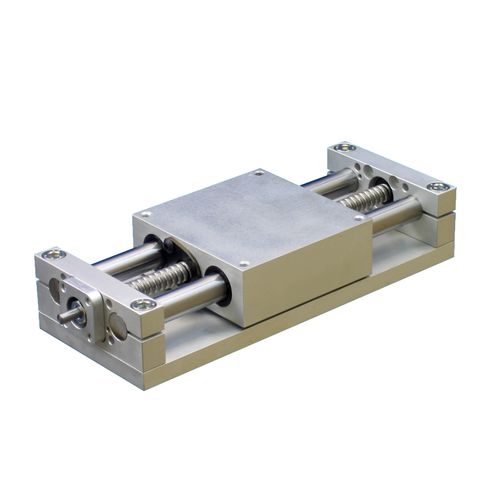

Trapezoidal screw slide table Type 308
precisionpositioning

trapezoidal screw slide table
trapezoidal screw slide table
Add to favorites
Compare this product


Characteristics

Operation
trapezoidal screw
Options
precision, positioning

Description

Positioning table for electric motor Guided by 2 rods on ball bushings Options : Motor adaptation (motor not supplied) Assembly in XY table Base plate Motor adaptation on linear table These ballscrew tables are delivered without motor, but the adaptation of your motor can be done by us. Some adaptations are standard, especially for standard motors (NEMA17 or NEMA23), if the dimensions of your motor are not listed, contact us to check the feasibility of your motor adaptation from our rough parts. Tables with ballscrew for motor The ballscrew is reversible and the axial precision of these tables is <0.07 mm. The maxi stroke is 400 mm, and any intermediate stroke can be produced. For a XY cross table, the tables are mounted on each other directly by the body with option 308922* (smooth holes are made in the body of a table). For less precise positioning applications, these tables are available with trapezoidal screw.
