Cylinder linear guide units

... for cylinders: - DIN/ISO 6432 (ø12, 16, 20, 25 mm) - ISO 15552, previous DIN/ISO 6431 (ø32, 40, 50, 63, 80, 100 mm) » To be used with VDMA/ ISO cylinders » Available as ball bearing guide ...

Load: 1 N - 36 N
Speed: 30 mm/s - 100 mm/s
Operating temperature: -10 °C - 80 °C

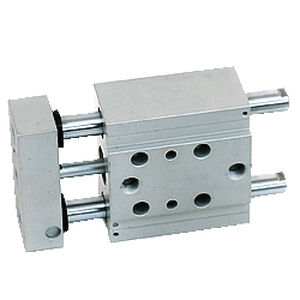

... two paired cylinders with a common anodized aluminium body containing slots for retracting sensors. There are 5 bores available: 2 x Ø 12, 2 x Ø 16, 2 x Ø 20, 2 x Ø 25 and 2 x Ø 30. Quantity per package: 0 Minimum ...

Load: 1.5 N - 130 N
Speed: 30 mm/s - 200 mm/s
Operating temperature: -10 °C - 80 °C

There are two sliding systems available: • on bushes • on ball bearings The frame is made up of two paired through-rod cylinders with a common anodized aluminium body containing slots for retracting sensors. There ...

Load: 1.5 N - 130 N
Operating temperature: -10 °C - 80 °C

Two sliding systems are available: • on bushes • on ball bearings The structure is made up of two paired through-rod cylinders with a common anodized aluminium body with grooves for mounting the retractable sensor. Five ...

... normalised cylinders Ø12 to 25 ISO 6432 and Ø32 to 125 VDMA 24562. Light and classic series are present in U version and strengthened and heavy series are found in H version. ball bearing are present for better guidance. H ...

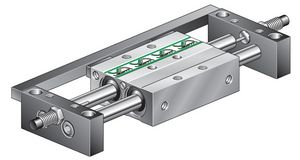

Compact and economical guide unit for ISO 21287 cylinders Ø25 to 50 (supplied without cylinder) Ideal for compact guided cylinder applications ...

Rail length: 50 mm - 200 mm
Load: 0 N - 900 N
Operating temperature: -20 °C - 80 °C

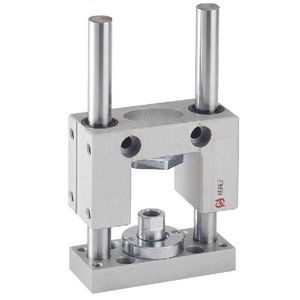

The guide units are accessories for cylinders ISO 6431 VDMA, ISO 15552 and ISO 6432. They have to be used in case high loads have to be moved at high translation speed ...
