Cylinder linear guide unit 45 series
slidetrackaluminum

Cylinder linear guide unit - 45 series - CAMOZZI AUTOMATION - slide / track / aluminum
Cylinder linear guide unit - 45 series - CAMOZZI AUTOMATION - slide / track / aluminum
Cylinder linear guide unit - 45 series - CAMOZZI AUTOMATION - slide / track / aluminum - image - 2
Cylinder linear guide unit - 45 series - CAMOZZI AUTOMATION - slide / track / aluminum - image - 3
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Technology
slide
Other characteristics
track, aluminum, for cylinders, stainless steel

Description

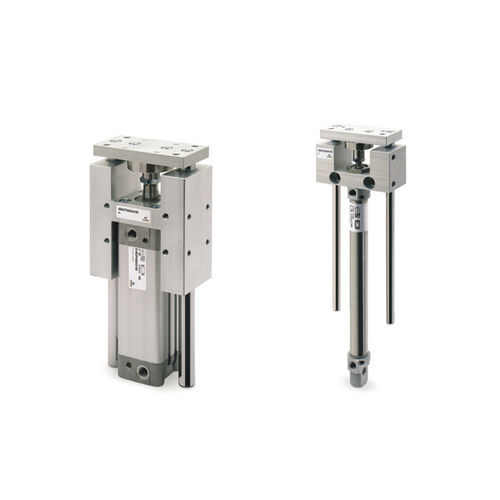

Suitable for cylinders: - DIN/ISO 6432 (ø12, 16, 20, 25 mm) - ISO 15552, previous DIN/ISO 6431 (ø32, 40, 50, 63, 80, 100 mm) » To be used with VDMA/ ISO cylinders » Available as ball bearing guide and self lubricating guide Series 45 guide units can be used with all DIN/ISO 6432 cylinders of ø12 ÷ ø25 and ISO 15552, previous DIN/ISO 6431, cylinders of ø32 ÷ ø100. They have been developed in order to prevent piston rod rotation and can support possible radial loads. Series 45 guide units are available in three different models depending on the applicable loads. The UT and HT guides with crawling supports are self lubricating, while HB guides have a ball bush. To ensure the right choice of the loads in relation to the stroke, please refer to the graphs. The shorter the stroke the higher will be the applicable loads. Operation - Mod. 45NUT and 45NHT: without lubrication Mod. 45NHB requires lubrication according to DIN 51825 code KP2G-20 Materials - body: anodized aluminium flexible coupling: stainless steel AISI 303 plate: anodized aluminium guided columns: rolled stainless steel AISI 420B (mod. 45NUT and 45NHT) - hardened steel C50 (Mod. 45NHB) Assembly - by means of threaded holes Strokes min - max - see diagrams Installation - in any position
