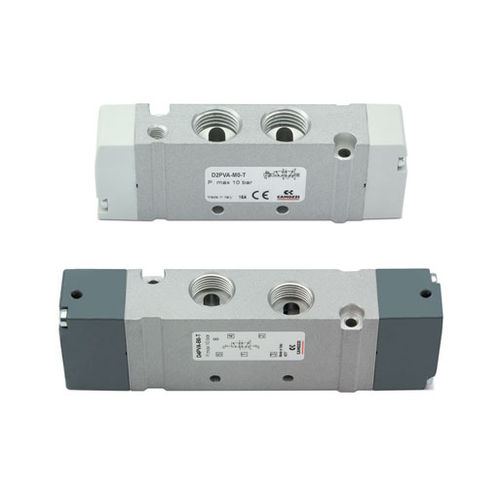

Pneumatic valve terminal D VA

spool5/2-way3/2-way

Description
Camozzi has developed a new series of valves for applications with limited installation space where control elements must be positioned close to the actuator. Valves with threads on the body can be used individually or assembled on a manifold sub-base to simplify cleaning and maintenance. The robust aluminium body ensures reliable operation in demanding industrial environments.

Key features

• Suitable for individual use or parallel manifold assembly
• Pneumatic and electric (solenoid) actuation
• Flow capacity up to 2000 Nl/min
• Aluminium body with technopolymer end caps
• Designed for installation in narrow spaces
• Electric connection available with M8 connector

Functional overview
Functions: 3/2; 2x3/2; 5/2; 5/3-way. Outlets on the body for individual or manifold assembly. Port sizes: 10.5 mm, 16 mm, 25 mm.

Models / Typical variants

• Series D1-VA — Manifold with valves, outlets on the body - size 10.5 (pneumatic and solenoid/electric variants)
• Series D2-VA — Manifold with valves, outlets on the body - size 16 (pneumatic and solenoid/electric variants)
• Series D4-VA — Manifold with valves, outlets on the body - size 25 (pneumatic and solenoid/electric variants)
• Sub-assemblies and manifold modules available (Module X, Module Y, blanking plates, various connectors and fittings)

Downloads
Product catalogue and certification documents are available as PDF files in the product resources.

Technical specifications

• Valve construction: spool-type
• Valve functions: 3/2 NC/NO; 2x3/2 NC/NO/NC+NO; 5/2; 5/3 CC/CO/CP
• Materials: body, spool, bases = aluminium; end caps = technopolymer; seals = HNBR
• Ports: M7 - G1/4 - G3/8
• Operating temperature: 0°C to +50°C
• Medium: compressed, filtered and non-lubricated air, ISO 8573-1:2010 class [7:4:4]; if lubrication is required use oil up to 32 cSt and the external servo pilot version
• Electrical versions: 24 V DC, tolerance ±10%
• Power consumption: 1 W
• Insulation class: Class F
• Protection: IP65 with EN 175301 C connector (actuation "3"), IP65 with M8 connector (actuation "C"), IP40 with micro connector (actuation "E")
