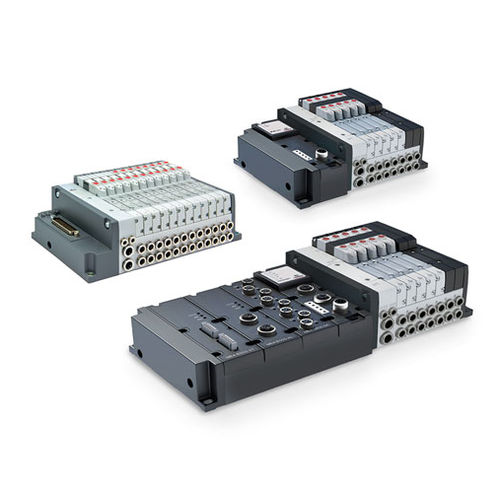

Pneumatic valve terminal D1

spool3/2-way2/2

Overview
Compact valve islands, size 1, offering multipole and Fieldbus interfaces. Designed to provide pneumatic and electrical functions where installation space is limited. Fieldbus versions support PROFIBUS-DP, PROFINET, CANopen, EtherNET/IP, EtherCAT and IO-Link. Multipole Sub-D connection available with 25 or 44 pins. Supported valve functions include multiple 2x2/2, 2x3/2, 5/2 and 5/3 (CC, CO, CP) configurations.

Key features

• Valve size: 10.5 mm
• Compact footprint for restricted spaces
• Individual modular subbases in technopolymer
• High electrical and pneumatic expandability
• Flexible connection and exchange of I/O modules
• COILVISION technology for monitoring coil performance
• Same subbase for monostable and bistable valves
• Optional transmission of operational data via WLAN
• Blinking LEDs to indicate different types of operating faults
• Available with pneumatic connection cartridges for inch-size tubing
• Optional ATEX compliance for hazardous zones

Product description
Series D valve islands provide a modular solution when pneumatic and electrical functions must be integrated into confined spaces. Multiple electrical connection options enable islands with high valve counts and segmented pressure zones. The Fieldbus versions manage digital and analog I/Os and allow the Fieldbus cover to be fitted after mechanical installation, enabling code configuration without the communication cover installed.

The pneumatic section supports free electric modules for reconfiguration of I/O without disassembling the island from the machine. Small dimensions combined with high flow rates, individual pneumatic and electrical subbases, a simple subbase connection system and continuous diagnostic functions (including coil monitoring) make the Series D suitable for demanding industrial applications. Electronics in the subbase and in the Sub-D or multi-serial connection modules continuously monitor coil efficiency. Deviations from nominal conditions (increased power consumption, response-time variation, temperature rise) are signalled by distinct LED blinking patterns on the valve and by an electrical alert to the PLC via the Sub-D cable or directly through the communication protocol when using multi-serial modules.

Fieldbus / Multipole summary
Fieldbus: compatible with PROFIBUS-DP, PROFINET, CANopen, EtherNET/IP, EtherCAT and IO-Link. Multipole: Sub-D connector with 25 or 44 pins. Supported valve functions: 5/2 (mono- and bi-stable), 5/3 (CC, CO, CP), and multiple 2x3/2 and 2x2/2 combinations.

Technical specifications

• Pneumatic section — Valve construction: Spool with seals
• Pneumatic section — Valve functions: 5/2 monostable and bistable; 5/3 CC, CO, CP; 2x3/2 NC; 2x3/2 NO; 1x3/2 NC + 1x3/2 NO; 2x2/2 NC; 2x2/2 NO; 1x2/2 NC + 1x2/2 NO
• Pneumatic section — Materials: Spool: AL; Spool seals: HNBR; Other seals: NBR; Body: AL; End caps: polymer; Subbase size 1: polymer
• Pneumatic section — Connections: Tube Ø4 - Ø6 / Tube Ø5/32" - Ø1/4"; Supply 1: tube Ø8 - 5/16"; Supply 12/14: tube Ø4 - 5/32"; Exhaust 3 and 5: tube Ø8 - 5/16"; Exhaust 82/84: tube Ø4 - 5/32"
• Pneumatic section — Temperature range: 0 ÷ 50°C
• Pneumatic section — Air characteristics: Compressed, filtered and non-lubricated air class [7:4:4] per ISO 8573-1:2010. If lubrication is required, use oils up to 32 cSt and the version with external servo-pilot supply. Servo-pilot air quality must be class [7:4:4] (do not lubricate).
• Pneumatic section — Valve size: 10.5 mm
• Pneumatic section — Operating pressure: -0.9 ÷ 10 bar (-0.7 ÷ 10 bar for 2x3/2 and 2x2/2 versions)
• Pneumatic section — Internal pilot pressure: 3 ÷ 7 bar (see pilot pressure graph for 2x3/2 and 2x2/2)
• Pneumatic section — External pilot pressure: See graphs
• Pneumatic section — Flow rate: 250 Nl/min
• Pneumatic section — Mounting position: Any position
• Pneumatic section — Protection class: IP65
• Electrical section — Versions: Multipole; Multipole for all-monostable valves
• Electrical section — Sub-D connector: 25 or 44 pins
• Electrical section — Max. absorption (multipole): 0.8 A (Sub-D 25 pins); 1.5 A (Sub-D 44 pins)
• Electrical section — Supply voltage: 24 V DC ±10%
• Electrical section — Max. number of coils to operate (examples): 22 coils on 11 valve positions (Sub-D 25 pins) up to 38 coils on 19 valve positions (Sub-D 44 pins); other configurations available for higher positions depending on connector
• Electrical section — Signalling LEDs: Multipole: green = power present, red = anomaly. Valve: yellow = power present, blinking yellow = operating fault
• Fieldbus version — General data: See multi-serial modules section for details
• Fieldbus version — Max. absorption: 2.5 A
• Fieldbus version — Supply voltage: 24 V DC ±10% logic supply and 24 V DC ±10% power supply
• Fieldbus version — Max. number of coils to operate: 128 coils on 64 valve positions
• Fieldbus version — Max. digital and analog I/O: Max digital inputs 128; Max analog inputs 16; Max digital outputs 128; Max analog outputs 16
• IO-Link version — Max coils: 64 coils on 32 valve positions
• IO-Link version — Port type: Class B
• Compliance and certifications: REACH, RoHS; EMC; ATEX II 3G Ex ec IIC T4 Gc X II 3D Ex tc IIIC T1 35°C Dc X 0°C≤Ta≤50°C (on request for multipole); UL
