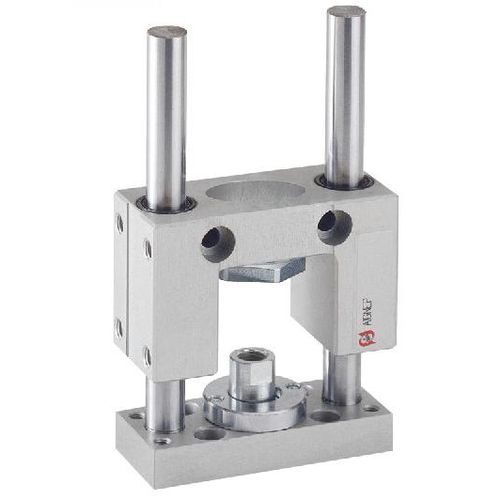

Slide linear guide unit MLCUB series
precisionfor cylinders

slide linear guide unit
slide linear guide unit
slide linear guide unit
Add to favorites
Compare this product


Other characteristics
precision, for cylinders
Rail length

Min.: 50 mm (1.97 in)

Max.: 200 mm (7.87 in)


Min.: 0 N

Max.: 900 N

Operating temperature

Min.: -20 °C (-4 °F)

Max.: 80 °C (176 °F)


The guide units are accessories for cylinders ISO 6431 VDMA, ISO 15552 and ISO 6432. They have to be used in case high loads have to be moved at high translation speed with precision locating. Thanks to this precision, the guide units are particularly suitable to create loading system for tooling machines, for packaging operations and generally speaking to realise manipulations units. The guide units are available for the following cylinders: Bores: from 12 to 100 mm ISO 6431 VDMA / ISO 15552 (Ø32-Ø100) ISO 6432 (Ø12-Ø25)


No catalogs are available for this product.

See all of AIGNEP‘s catalogs
