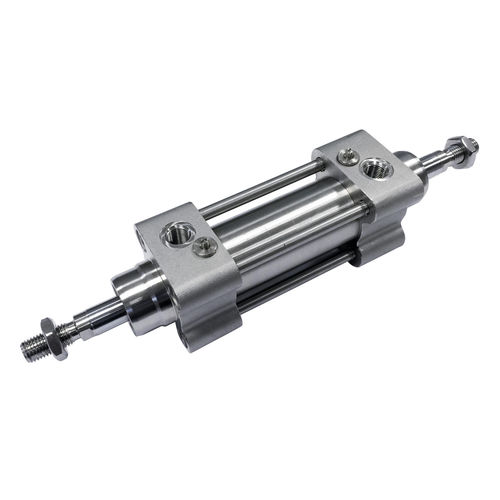

Pneumatic cylinder VLI seriesmagnetic pistonwith through roddouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Technology
- magnetic piston, with through rod
- Configuration
- double-acting
- Material
- stainless steel
- Other characteristics
- with adjustable cushions
- Stroke
Max.: 1,000 mm
(39.37 in)Min.: 25 mm
(0.984 in)- Bore
Max.: 125 mm
(4.92 in)Min.: 32 mm
(1.26 in)- Pressure
Max.: 10 bar
(145 psi)Min.: 1 bar
(14.5 psi)- Ambient temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description
Component Parts and Materials
1 Stainless steel piston rod AISI 304/316
2 PU Seal
3 Bush in sinterized bronze
4 Stinless steel front cover AISI 304/316
5 PU Seal
6 Stainless steel tube AISI 304/316
7 PU Seal
8 Magnet Bonded ferrite
9 Guide in PBT+PTFE
10 Piston in Aluminium
11 Pneumatic cushion
12 Stainless steel rear cover AISI 304/316
Fluids
Filtered and lubricated compressed air as well as non lubricated air.
Functioning
Double-acting cushioned magnetic
Single or through piston rod .
