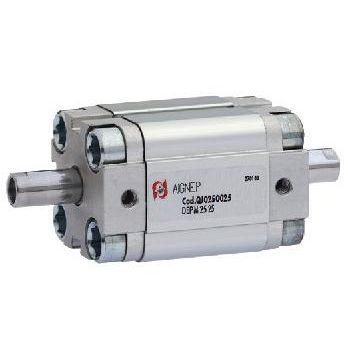

Compact cylinder QJ1225pneumaticmagnetic pistonwith through rod
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Technology
- magnetic piston, with through rod
- Configuration
- double-acting
- Other characteristics
- compact, double-rod
- Stroke
Max.: 50 mm
(1.969 in)Min.: 5 mm
(0.197 in)- Bore
12 mm, 16 mm, 20 mm, 25 mm
(0.47 in, 0.63 in, 0.79 in, 0.98 in)- Pressure
Max.: 10 bar
(145.04 psi)Min.: 1 bar
(14.5 psi)- Operating Temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description
Component Parts and Materials
1 Chrome steel Piston rod
(AISI 303 from 12 to 25)(C40 from 32 to 100)
2 Anodised aluminium Front cover
3 Zinc-plated steel Screw
4 Polyurethane Rod Seal
5 Sintered bronze Bearing
6 NBR O-RING Seals
7 Polyurethane Piston Seal
8 Bonded ferrite Magnet
9 Aluminium Piston
10 NBR O-RING Seals
11 Zinc-plated steel Piston nut
12 Anodised aluminium Cylinder shape body
13 Anodised aluminium Back cover
Fluids
Filtered and lubricated compressed air as well as non lubricated air.
Functioning
Single acting magnetic.
Double-acting magnetic.
Single or through piston rod magnetic.
Antirotation magnetic.
