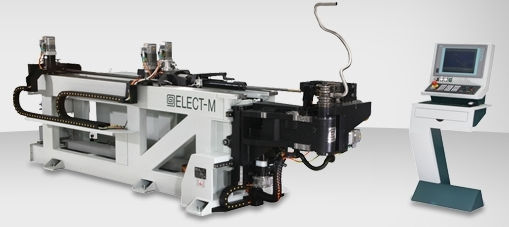

CNC tube bending machine
max. ø 42 - 80 mm | ELECT
BLM GROUP
Fully electric CNC tube bender for tubes with OD 80 mm, 9 axis with 3D visual graphic programming (VGP3D)
Features:
multiradii (up to 8 tools)
bend head with left or right hand bending sense configuration
all the critical machine setting parameters set and managed by the CNC control
Fixed, variable radius and boost bend up to 5.000 kg
High reliability and high productivity
Use of existing tools - low running costs
Real time bend simulation automatically selecting the shortest and most efficient bending cycle to minimize cycle time and reduce cost
Any possible collision points are highlighted and the most practical avoidance routes effected
Axis position is read by absolute encoder eliminating all conventional sensors, increasing reliability, performance and reducing maintenance cost
