panel-mount enclosure / in plastic / aluminum / sheet steel
BoTouch series Bopla Gehäuse Systeme GmbH

{{requestButtons}}

Characteristics

  • Construction:

    panel-mount

  • Material:

    in plastic, aluminum, sheet steel

  • Application:

    for touch screens

  • Protection level:

    IP65

  • Width:

    166 mm, 226 mm, 316 mm

  • Height:

    116 mm, 146 mm, 236 mm

  • Depth:

    46 mm

Description

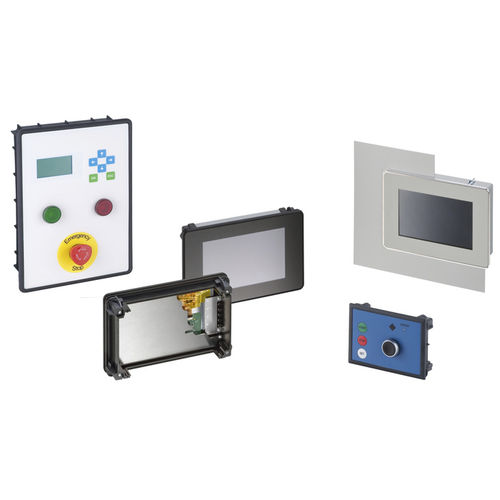

Individual enclosures, optimised for the installation of capacitive and resistive touch screens

BoTouch Plastic (BTK / BTK-IP) designed for use with capacitive touch screens (from 4.3" to 10.4")
BoTouch Aluminium (BTA) designed for use with resistive touch screens (from 5.7" to 12.1")
project-specific variants on request
enclosure front / front membrane: project-specific printing
rear hood / enclosure frame fitted with clamps for panel installation
project-specific display retaining plate made of aluminium (the following are required for preparation work: sample, CAD data or a datasheet for the touch/display combination.)
starter kits are available consisting of enclosure incl. mounted display for various designs

Product search in BoTouch

Colour
BTK / BTK-IP: black, similar to RAL 9005; BTA: customer-specific
Protection class
BTK-IP: IP 65/DIN EN 60529 BTK / BTA: Up to IP 65/DIN EN 60529 for the installation area
Enclosure material
Rear hood: galvanised sheet steel Rear panel: anodised aluminium BTK enclosure frame: PC UL 94 V0 BTK-IP enclosure frame: PA 6.6 GF 30 UL 94 V0 BTA front frame: aluminium (anodised or powder-coated)
