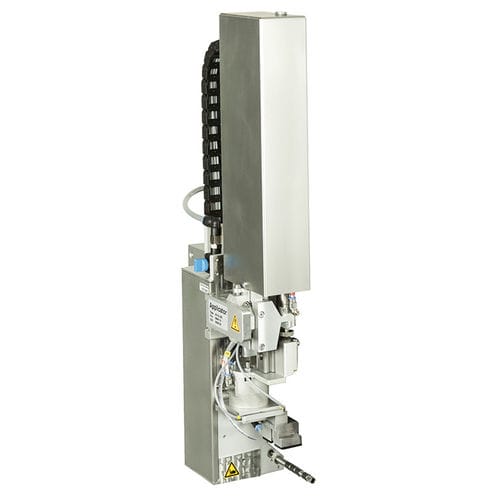

Automatic label applicator 4214 Series

topsidefor self-adhesive labels

Labels very small or midsized can be applied in real time from all sides whenever the unit is difficult to install The pad locates in front of the peel-off plate. It picks up a label while it is being printed. Powered by a rotary cylinder, the pad pivots into position by at most 180° in horizontal direction. The label is transferred to a product by a stroke cylinder. The length of the stroke cylinder defines the maximum distance of a product to the peel-off plate. Tamp-on pad Labels are precisely tamped on plane surfaces. Recessed levels are possible as well. Blow-on pad It benefits when labels have to be applied to sensitive surfaces or products in motion. Labels are blown on by a blast of air. Stroke cylinder adjustment enables bridging distances of 5 to 10 mm to the surface of a product. Tamp-on pad, providing a damping layer When applying labels to hard surfaces, the noise level is reduced. It benefits also in cases of rough structures or little unevenness. Tamp-on pad, providing a label stop It enables small labels be applied exactly on spot to a product.
