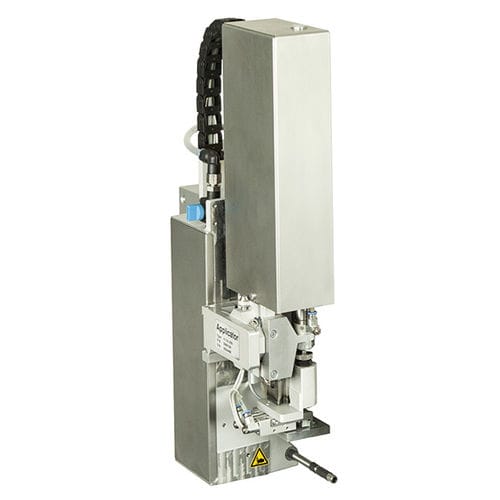

Automatic label applicator 4114, 4116 Series

topsidefor self-adhesive labels

The pad locates in front of the peel-off plate. It picks up a label while it is being printed. Powered by a short stroke cylinder, the pad is brought into position in horizontal direction. The label is transferred to a product by a stroke cylinder. The length of the stroke cylinder defines the maximum distance of a product to the peel-off plate. Tamp-on pad Labels are precisely tamped on plane surfaces. Recessed levels are possible as well. Tamp-on pad, providing a damping layer When applying labels to hard surfaces, the noise level is reduced. It benefits also in cases of rough structures or little unevenness. Tamp-on pad, providing a label stop It enables small labels be applied exactly on spot to a product. Blow-on pad It benefits when labels have to be applied to sensitive surfaces or products in motion. Labels are blown on by a blast of air. Stroke cylinder adjustment enables bridging distances of 5 to 10 mm to the surface of a product. Form pad Labels are precisely applied to cylindric objects, inclined or curved surfaces. Curved form pads prevent from blistering on very smooth and plane surfaces. 200° maximum label wrapping on cylindric objects
