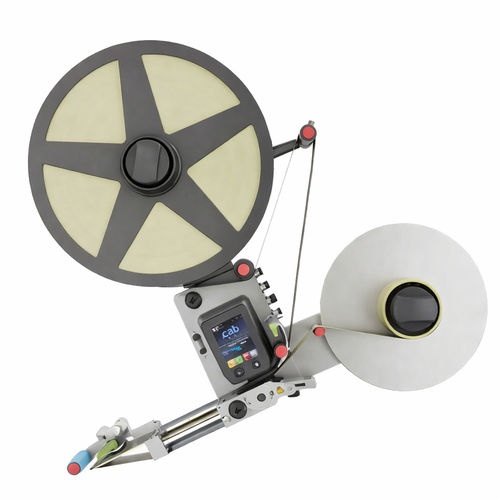

Automatic label applicator Labeling head IXOR+

canshrink sleevehorizontal

for label webs running as fast as 50 m/min Roll diameters 310 mm and 410 mm Unwinders and demand units can be assembled also independent from a base unit Vertical assembly position: The sleeve core is extended by 62 mm relative to the rewinder to accommodate and clamp the counterholder. The labeling head can also be mounted horizontally. Horizontal assembly position: There is no counterholder. The sleeve cores of the unwinder and rewinder are the same length. 1 Rewinder The liner is wound when labels have been dispensed. A pendulum arm and an integral clutch keep the liner under constant tension in subsequence to the drive roller. 2 Unwinder picking up label rolls with a maximum diameter of 410 mm. A pendulum arm and an integral brake keep a label web under constant tension. 3 Sleeve retainer Turning the handle tensions and releases the label roll sleeve. 4 Unit retainers for securing and guiding a label roll when installed in vertical orientation. For this purpose, the sleeve retainer is designed 62 mm longer than in horizontal installation. 5 Base unit It is the center of a labeling head and contains the drive roller for feeding a label web, a brushless servo motor and the system control including the operation panel. 6 Operation panel Color 3.5" LCD touchscreen , rotation by 180° enables overhead installation. 7 Pick-up spots for assembly onto columns with a diameter of 30 mm. Label positions on a product can thus be set transversely to its direction of running. 8 Demand unit It can be configured for specific applications using a comprehensive modular system.
