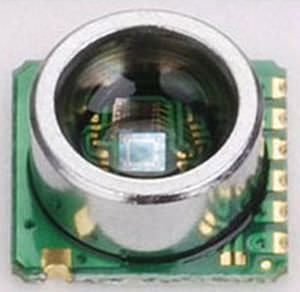

Piezoresistive absolute pressure sensor
max. 1 100 hpa | BM03S
Celmi
The BM03S includes a piezo-resisteve pressure sensor and an ADC interface. It provides 16bit word data for pressure and temperature related voltage. With the help of a highly accurate calibration of the sensor, 11 unique coefficients were stored on the chip, thus accurate pressure and temperature reading can be interface is used for communications with a microprocessor. Sensor packaging options are DIP or SMD (with metal cap).
APPLICATIONS:
-Pressure measurement and control system.
-Mobile altimeter / barometer system.
-Weather forecast products.
-Adventure or multi-mode watches.
FEATURES:
-15bit ENOB ADC resolution.
-Supply voltage: 2,0V-5,0V.
--30°C to +85°C operating range.
-Integrated pressure sensor.
-Pressure range: 300-1100hPa.
-16bit Σ-ΔADC.
-11 coefficients for software compensation stored on chip.
-I2C serial interface.
-One system clock line (32768Hz).
-One hardware controlled reset line.
-Low voltage, low power.
