Relative pressure sensor MPM283
piezoresistiveanalogstainless steel

relative pressure sensor
relative pressure sensor
relative pressure sensor
Add to favorites
Compare this product


Characteristics

Pressure type
relative
Technology
piezoresistive
Output signal
analog
Other characteristics
stainless steel, compact, precision, OEM, for liquids and gases
Process temperature

Min.: -10 °C (14 °F)

Max.: 80 °C (176 °F)

Pressure range

Min.: 700,000 Pa (101.53 psi)

Max.: 100,000,000 Pa (14,503.77 psi)

Description

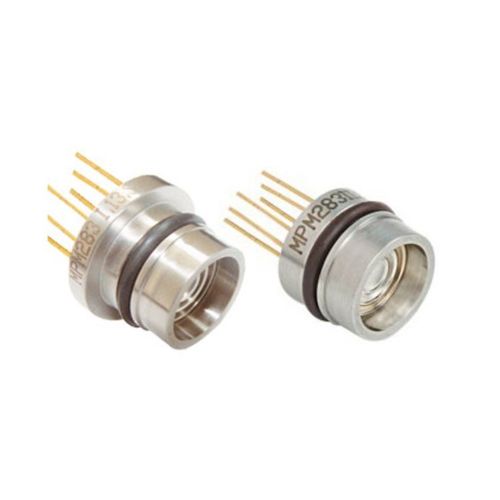

features DESCRIPTION: MPM283 Piezo-resistive pressure sensor is OEM pressure sensor with stainless steel isolated diaphragm, the whole product has integrated construction, high endurance, high stability and good reliability, it can be used specially for middle and high pressure measurement. The sensor using high accurate and stable pressure die, are produced on the advanced production line. With identical mounting dimension, the sensor are widely used for chemi-industry, process control, liquid pressure system and switch, etc. FEATURES: Pressure range: 0 – 700kPa … 100MPa Gauge, absolute and sealed gauge Constant current power supply Isolated construction , enable to test measure various media Ф12,6mm compact size OEM pressure sensor Stainless steel 316L Wider temperature compensation range: -10°C ~ +80°C APPLICATIONS: Industrial process control. Pressure inspection meter. Cooling equipment and air conditioner. Level measurement. Pressure calibrator. Gas, liquid pressure measurement. Liquid pressure system and switch. Aviation and navigation inspection.
