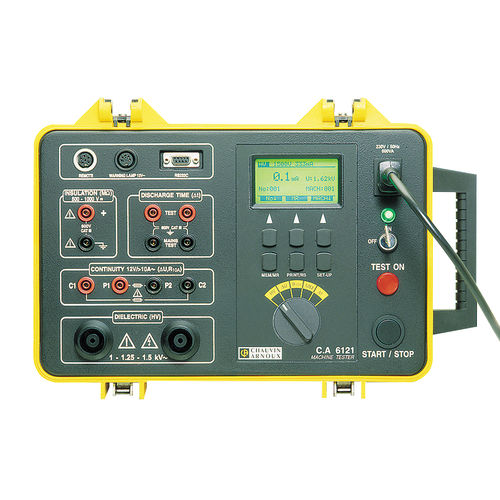

Insulation tester C.A 6121

continuitydielectricfor electrical equipment

Description The rugged and portable C.A 6121 is comprehensive tester for the EN 60204 machine directive; it covers all the measurements specified by this directive. dielectric test: at 1,000, 1,250 and 1,500 V AC with: - adjustment of max. current threshold - display of real voltages and currents - test with or without timer - floating HV outputs for greater safety insulation test: 0 to 500MΩ at 500 or 1,000V DC with: - programming of the min resistance threshold - testing with or without timer function continuity test: 0 to 2Ω at 12V / >10A AC with: - 4-wire measurement - voltage drop display (∆U: 0 to 10V - programming of the max. voltage drop and resistance threshold - testing with or without timer function discharge time test: 0 to 10s at 600V AC/DC - measurement at 2 points (power supply terminals) or 4 points (internal components) backlit LCD matrix screen storage of 1,000 measurements RS232 output remote control signals software / remote control pedal / indicator lamps and printer available as options IP54 site-proof casing measurements according to EN 60204-1, VDE 104 and EN 61180-1 et -2 electrical safety: IEC 1010 Cat.III 600V dimensions: 250 x 260 x 400 mm; weight: 11 kg
