Climate chamber G series humiditytemperatureenvironmental
Add to favorites
Compare this product
Characteristics
- Type
- climatic
- Controlled parameter
- temperature, humidity
- Test type
- environmental
- Product applications
- for solar panels, for vehicles, for automobiles, for materials testing machines
- Application domain
- for the aeronautical industry, European standards-compliant
- Other characteristics
- high-capacity
- Capacity
Max.: 100 m³
(3,531.47 ft³)Min.: 3 m³
(105.94 ft³)- Temperature
Max.: 180 °C
(356 °F)Min.: -70 °C
(-94 °F)- Interior length
1,500 mm, 2,200 mm, 3,020 mm
(59.06 in, 86.61 in, 118.9 in)- Interior height
700 mm, 2,100 mm, 2,500 mm
(27.56 in, 82.68 in, 98.43 in)- Interior depth
1,500 mm, 2,500 mm, 3,000 mm, 4,070 mm
(59.06 in, 98.43 in, 118.11 in, 160.24 in)- External length
1,700 mm, 2,700 mm, 3,380 mm
(66.9 in, 106.3 in, 133.1 in)- External height
1,250 mm, 2,680 mm, 3,300 mm
(49.21 in, 105.51 in, 129.92 in)- External depth
3,850 mm, 4,100 mm, 5,340 mm
(151.57 in, 161.42 in, 210.24 in)
Description

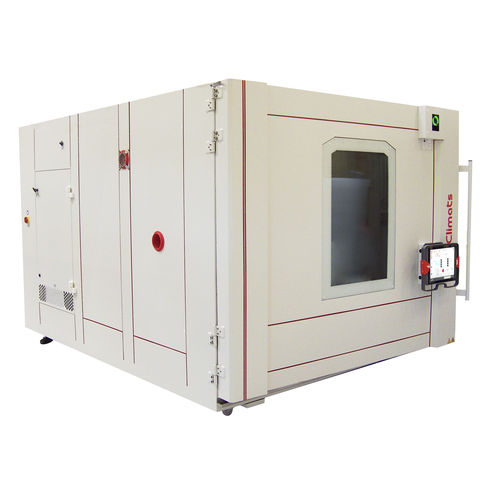

CLIMATS G-type environmental chambers are widely endorsed by their users :
• because of their important tests volumes
• because of their equipping adaptability (accessibility, loading)
• because of their test modes multivalence (Hot, Cold, Temperature, Temperature and Humidity)
• because of their uniformity with all the CLIMATS climatic chamber range
These machines, realized upon specifications, are equipped with test volumes espacially dedicated to large size samples.
Tests volumes are optimized according to the geometry, the nature, the mass and the dissipation of the product to be tested.
These chambers are standards that vary according to circumstances.
They benefit from CLIMATS expertise, integrating a ventilation, arefrigerating machinery, an electric board, a SPIRALEpiloting system, which are the basics of our constructions.
The flexibility of the manufacturing process enables to build one-piece environmental chambers equipped with remote machineries according to perfectly controlled conception methods.
