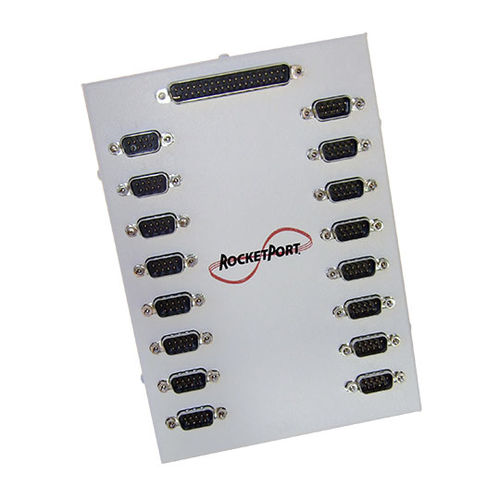

RocketPort ® 16-Port DB9M InterfaceThis RocketPort 16-Port DB9M serial card interface has 16 DB9 male connectors, communication speeds up to 460Kbps, and 15KV surge protectionPart Number: 30030-4
15KV surge protection
DB9 male connectors
RS-232/422/485 software-selectable ports
Communications speeds-up-to 460Kbps
The next generation RocketPort 16-Port Interface has sixteen DB9M connections that can be configured for RS-232/422/485 serial communications at speeds-up-to 460Kbps. The interface also contains an additional connection for the host interface cable. This product is not usable with older RocketPort ISA, PCI, or uPCI products, and is only suitable for use with the RocketPort INFINITY PCI-X and RocketPort EXPRESS PCIe products.
Includes:
RocketPort 16-Port DB9M Interface Device
Loopback Plug
Bumper
Brackets (4)
