IO-Link Master

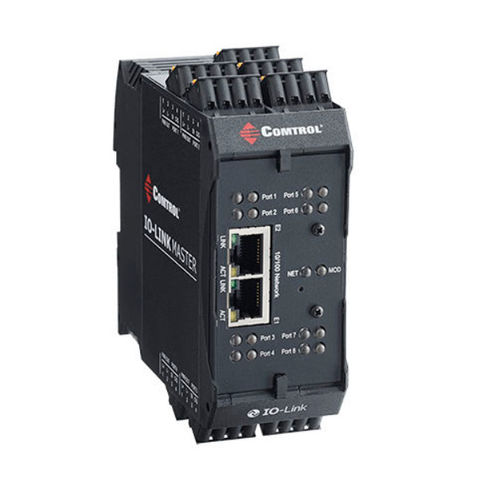

DR-8-PNIO-TThe IO-Link Master DR-8-PNIO-T is an 8-Port IO-Link Master featuring PROFINET IO communication, dual Ethernet ports, with pluggable/removable screw terminal connectors in a compact DIN rail design.Part Number: 99673-6
Eight port IO-Link Master to PROFINET IO with pluggable/removable screw terminal connectors for IO-Link and Power
IP20 DIN rail mount enclosure
Dual Ethernet ports
Additional digital input on every port
MultiLink™ – Simultaneously provides IO-Link device access to multiple controllers
PLC access to IO-Link ISDU blocks without complex programming
PROFINET Certification
GDSML files
Supports OPC UA
Powerful web GUI for configuration and diagnostics, including: IO-Link device management using the IO-Link device manufacturers IODD file for easy device configuration, Automatic data storage (upload and download), Manual data storage (upload and download), Device validation, and Data validation.
Works with PortVision DX - a discovery management application
LEDs for device, network, and port status
Wide operating temperature (-40° to +70°C)
IO-Link V1.0 and V1.1 compatibility
IO-Link COM1, COM2 and COM3 (230K baud rate) support
