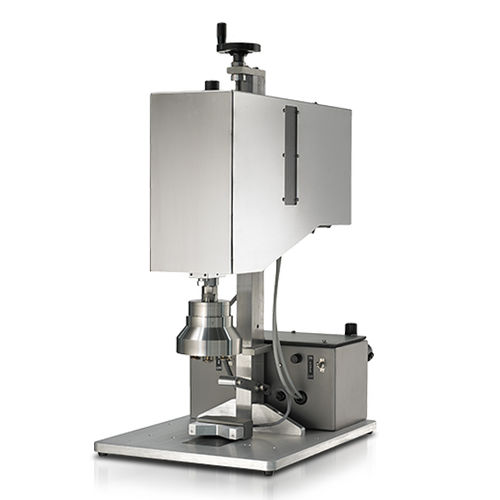

Overhead screw-capping machine SC50T

semi-automaticmulti-container

Provides uniform tightening of container caps up to 95mm in diameter and provides gentle cap handling. This machine is ideal for lab use with speeds up to 50 containers per minute. Screw cap configuration: With the cap in position, the operator places the container against a “V” plate. The reciprocating spindles then automatically descends to screw on the cap. Torqueing time can be adjusted from .15 to 10 seconds, thereby accommodating most capping speeds. Aluminum Seal Configuration: With the cap in position, the operator places the container against a “V” plate. The crimping head that consists of 3 blades and 3 rollers then automatically descends to seal the cap; Crimping time can also be adjusted from .15 seconds to 10 seconds. • Aluminum Bottom Plate • Aluminum Housing Body • 304 Stainless Steel Housing Top Guide • 115V / 60Hz / 1 Ph, 80psi Minimum Compressed Air • Maintenance and Operation Manual • Capping Heads or Collets to fit 16 to 95mm • Caps Wedge Collet for Eyedropper Containers • Guide Assembly for Irregular Shaped Containers • Swing Holder Assembly • Lubri-Air Control Unit • Air Compressor • Explosion Proof Electrical • Spare Parts Kit • Additional Manuals • IQ/OQ Validation Protocol • Factory Acceptance Protocol • PQ Protocol
