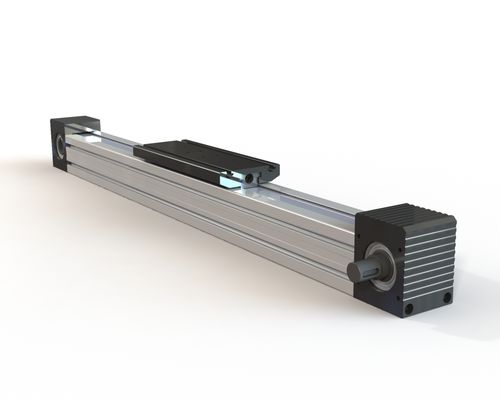

Skate wheel linear guide 64x64steelcompact
Add to favorites
Compare this product
Characteristics
- Technology
- skate wheel
- Other characteristics
- steel, compact
- Rail length
Min.: 0 mm
(0 in)Max.: 7,300 mm
(287.4 in)- Rail width
64 mm
(2.52 in)- Load
2,000 N
Description
Product Description With the small-sized design this series is preferred areas which have space problems.Compact is suitable for use in areas with lower load capacity. İts design provide to protection from dust and particles in the ambient . Trigerl drive system is preferred in applications requiring high speeds. Fast and long lasting linear motion system.
Technical Specifications
Body; Aluminum (6063) 64x64 Profile
Speed; Max: 5 m / s
Drive; Timing Belt
Timing Belt; 5m-30 Steel Wire Cloth for NFT
Timing Pulleys; Z26-5m-30F
Linear Rails; 15 mm
Linear Block; 15-Norrow
Protection; Self-feature compact design and easy maintenance (lubrication system)
Sensitivity; 0.02 mm
Engine Option; Geared Motors Servo-Step
