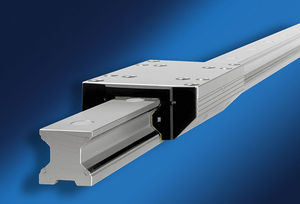

Aluminum linear guides

Rail width: 7 mm - 15 mm
Rail length: 0 mm - 1,000 mm

... solution for complete steel profile rails as they are lightweight and flexible. This product uses top-class quality of aircraft aluminum alloy along with hardened steel load bearing plates and ball paths. It is best-suited ...

Rail width: 22 mm - 40 mm
Rail length: 0 mm - 4,000 mm

The DryLin T linear guide systems have been designed specifically for use in applications relating to automation and handling systems. A rugged linear guide for use in ...

Rail width: 40 mm - 80 mm
Rail length: 0 mm - 2,000 mm
Load: 50 N - 1,000 N

The DryLin N low profile guide systems provide low profiles in numerous widths. The carriage runs without lubrication in anodized aluminum profiles, as in all DryLin products. DryLin ...

Rail width: 30 mm - 120 mm

The DryLin® W linear guide has a flexible design and is made of robust material that can resist harsh working conditions. This guide has quick-to-assemble parts and thus, like other size ...

Rail length: 300 mm - 4,000 mm
Load: 300 N - 4,700 N

... lightweight, aluminum roller guides that provide smooth operation and high load carrying capacity for industrial automation. They are designed for high speeds making them ideal for many applications. ...

Rail width: 35 mm - 250 mm
Rail length: 7,500 mm

Speedy Rail Self-supporting linear rail in extruded aluminum with steel rollers covered in plastic Product Description Speedy Rail is the special self-supporting and self-aligning ...

Rail width: 30 mm - 82 mm
Rail length: 4,000, 3,000 mm

... Series, manufactured by Norelem, is a flat hard-anodized W double guide rail equipped with an aluminium casing. It has a layer thickness of 50 pm and layer hardness of 500 HV. The guide ...

Rail length: 0 mm - 3,898 mm
Load: 50 N - 3,200 N

Rolling guides RC Precise and smooth running because of spherical bushing guide The solid shafts serve for absorbing the high moments. Guide elements and end elements made of aluminium. - ...

Rail length: 0 mm - 5,860 mm
Load: 50 N - 2,250 N

Rolling guide PL-II Guide with integrated shaft holder of extruded aluminium profile. > External lubrication of guide shaft - Rolling guide with ...

Rail length: 0 mm - 5,850 mm
Load: 50 N - 2,550 N

Rolling Guide SQ-II This guide is made of the BLOCAN® profile system with fixing slots. > External lubrication of guide shaft. - Rolling guide with profiled anti-friction ...

Rail width: 37 mm - 120 mm
Rail length: 200 mm - 4,000 mm

... and pair of single rails Characteristics • Aluminum roller guide in standard version • Integrated raceways made of steel • Rollers with needle bearings for smooth and eays running • Adjustable ...

Rail width: 37 mm - 120 mm
Rail length: 200 mm - 4,000 mm

... of roller shoes and pari of sigle rails Characteristics • Aluminum roller guide in low-cost-design • Integrated raceways made of steel • Rollers with ball bearings • Adjustable slide ...

Rail width: 37 mm - 120 mm
Rail length: 200 mm - 4,000 mm

... of single rails Characteristics • Aluminum roller guide in non-corrosive design • Integrated raceways made of non-corrosive steel • Rollers with needle bearings for smooth and easy running • Adjustable ...

Rail width: 120 mm - 180 mm
Rail length: 150 mm - 280 mm

... PFV, T4 RAL, T4 RYL Carriages with anodised aluminium body with four guide rollers with “gothic arch” profile. LINEAR GUIDES Nadella is specialised in the ...

Rail length: 200 mm

LINEAR CARRIAGE LWK 16-60, L= 200 MM SKU 223000 0062 Delivery Time 2-3 Tage suitable for linear rail with internal guidance LSI 16-60

Rail width: 98 mm
Rail length: 150, 100 mm

LINEAR CARRIAGE LWR 6-48, L= 100 + 150 MM SKU 223000 003X Delivery Time 2-3 Tage suitable for Linear rail LSV 6-48 Linear carriage LWR 6-48 suitable for Linear rail ...

Rail length: 8 m

HepcoMotion DLS – Driven Linear System DLS from HepcoMotion offers belt driven actuation with a wide array of drive options available to meet the simplest to the most complex linear motion needs. Systems ...

Load: 3,300 N

... 3300N. Hepco LBG precision caged linear ball guides provide dynamic load capacities up to 52,100N. The actuator is housed in a high strength aluminum beam and is completely enclosed with ...

Load: 435, 800, 2,800, 10,000 N

... Simple Select® – Linear Guides Simple-Select from HepcoMotion provides an easy way to buy a ready-to-mount linear guide. Based upon HepcoMotion's most popular GV3 product ...

Rail width: 60 mm
Rail length: 100 mm - 1,200 mm
Load: 15 kgf - 40 kgf

... 40kg Ball Screw: G1610 Ball Screw Drive linear Positioning Tables linear Positioning Tables consist of Linear Guideway unit and ballscrew unit. For saving space, FUYU product combine ...

Rail width: 80 mm
Rail length: 100 mm - 1,500 mm
Load: 20 kgf - 60 kgf

【Technical Feature】 FSL80 linear guide, fully sealed structure, body width 80mm, it is designed for dustproof usage in hard environment, avoid dust or miscellaneous debris fall into body structure to ...

Rail width: 80 mm
Rail length: 100 mm - 1,500 mm
Load: 20 kgf - 60 kgf

【Technical Feature】 FSL80 linear guide, fully sealed structure, body width 80mm, it is designed for dustproof usage in hard environment, avoid dust or miscellaneous debris fall into body structure to ...

Rail length: 100 mm - 3,000 mm

Load: 1,957, 1,690, 3,514, 2,757 N

OAV Profile Dovetail Series Rail Guides consists of the next generation OAV Air Bearing® and manufactured from Aircraft Quality lightweight Aluminum 7075-T6 linear guides

Rail length: 250, 400 mm
Load: 4,083, 1,023, 8,140, 1,690 N

OAV Profile U-series Rail Guides with Double Carriage can be use separate or attached each other, manufactured from Aircraft Quality lightweight Aluminum Material. Air supply port located in guide ...

Rail width: 28.5 mm - 57.5 mm
Rail length: 6,000 mm
Load: 320 N - 8,000 N

Aluminum Roller Guides Properties Aluminum profile rail base, with integrated precision shafts out of hardened and ground steel 120° grooved bearings with bolt ...

... plated steel - Guide shaft, UGCG range: Allows the assembly of customised length actuator guides with 1, 2, 3 or 4 guide shafts Can be used with either long or short linear ...

Rail length: 80 mm - 1,210 mm

... surfaces are ground and the guides milled fine. Also on sale are one axe or multi-axe slide types that run on roller bearings. These are made of grey cast iron (GG 25) or of aluminium. Aluminium ...

The miniature roller slides can be delivered either as open type or with end plates. The exterior part is made of aluminium, the interior part consists of hardened steel. With standard drilling pattern.

... classic amongst the linear adjustment units – the SVAN guidance system of aluminium: easy to combine, designed for high moment load, available from stock – this combination convinces and lets more and more users take ...

Rail length: 0.1 mm - 6,000 mm
Load: 1,020 N - 8,000 N

... always in anodized aluminum wherein two steel bars are hardened with ground and chromium-plated are placed. The tool has a total length of 6m, provided with a little line that displays the middle of the ...

Rail length: 0.1 mm - 6,000 mm
Load: 1,020 N - 7,850 N

The linear axes was manufactured by CTS company. It either have a single bar or a double bar feature in all. The double bar is applicable when looking for a solution that is easy to assemble. The unit have a light ...

AK208R CTS linear units are a perfect solution for a space-saving, smooth-gliding device with very low-maintenance. The AK series, linear units can be accessed in three different models. They are equipped ...

Rail width: 18, 31, 22, 44 mm
Rail length: 50 mm - 1,200 mm

Deep groove type RSDE The design of the RSDE precision linear bearing is based on the conventional crossed roller linear bearing. Thanks to a deeper ground V-groove as well as the rollers' contact length ...

... rigid, high precision, compact linear motion guide. The cross roller guide is commonly used in: Measuring and Optical instalments and other applica- tions requiring high precision linear ...

Rail width: 3.94, 2.95, 4.92 in
Rail length: 12'00"
Load: 0 N - 4,400 N

HepcoMotion’s Uni-Guide Linear Motion System is a ready-made light weight solution, suitable for applications requiring a wide but compact footprint. Simple installation with no time ...

Rail width: 90, 78, 140 mm
Rail length: 530, 440, 330 mm
Load: 800 N - 4,400 N

Mechanical linear unit with two internal roller guides. The system is driven by an internal toothed belt.

Rail length: 100 mm

Linear carriage LWK 4-18 Aluminium T-profile, naturally anodized 4 profile rollers with ball bearings adjustable free of clearance by O-ring Material: plastic

Rail width: 65 mm
Rail length: 1.2, 2.4 m
Load: 60 N

The heavy duty aluminium track comes in 2 lengths: 2.4m and 3.6m. Carriages, with either stainless steel or polymer ball bearings, are added as required. The customer cuts the tracks to length and drills ...

Rail width: 40 mm
Rail length: 0 mm - 1,000 mm

The belt driven versions of the SIMO® series linear motion platform can use 3 bearing options. They have 2 choices of belt and motor mounting. The UGT tall profile horizontal belt and motor mount has structural integrity ...

Rail length: 47, 94 in

Aluminum tracks and re-circulating ball carriages provide movement, guidance, or positioning for screens, panels, partitions, or other components. Linear Motion Track System. Load Rating: up to 265 ...
