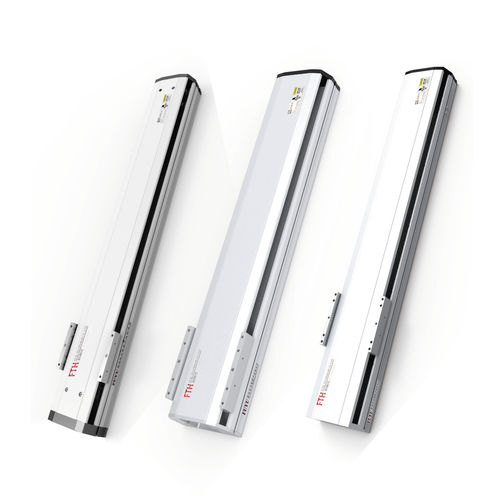

Ball screw linear motion system FTH Series
precisionfor heavy loadshigh-precision

Ball screw linear motion system - FTH Series - FUYU Technology - precision / for heavy loads / high-precision
Ball screw linear motion system - FTH Series - FUYU Technology - precision / for heavy loads / high-precision
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Technology
ball screw
Other characteristics
high-precision, for heavy loads, aluminum, precision
Rail length

Max.: 1,500 mm
(59.06 in)

Min.: 50 mm
(1.97 in)

Speed

Max.: 500 mm/s

Min.: 200 mm/s

Precision

0.02 mm
(0.001 in)

Operating temperature

Max.: 50 °C
(122 °F)

Min.: -20 °C
(-4 °F)

Description

FTH Series Semi Enclosed Screw Linear Module | High Precision, Rigidity, and Load Capacity The FTH Series Linear Module is designed to meet the diverse demands of the automation market with its high precision, rigidity, and load capacity. Featuring a screw-driven mechanism with a protective cover plate, it ensures smooth and stable operation, making it one of the most widely adopted solutions in the global market. Key Features High Precision and Stability Delivers a repeatability accuracy of ±0.02mm, ensuring reliable and consistent performance for demanding applications. Exceptional Load Capacity Supports heavy loads ranging from 50kg to 120kg, ideal for high-load industrial tasks. Robust and Durable Design Engineered with high rigidity to maintain stability and long-term durability under rigorous conditions. Wide Applicability With a stroke range of 50-1500mm and speeds of 200-500mm/s, it is suitable for a variety of automation needs across industries. Applications Ideal for applications such as material handling, assembly, and precision manufacturing, the FTH Series is a trusted choice for industrial automation solutions. Achieve precision, strength, and reliability with the FTH Series Linear Module.

VIDEO
