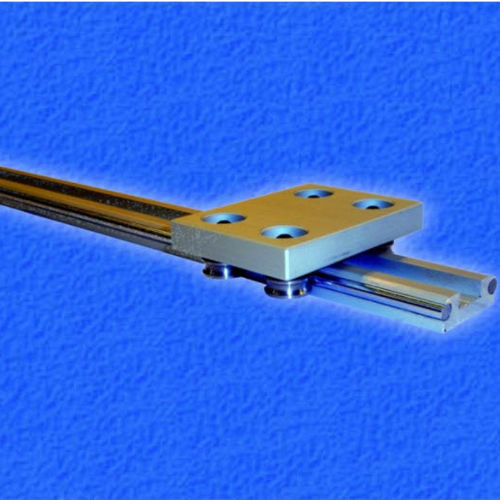

Roller linear guide DI32

precisionsteelaluminum

• - Aluminum profile rail base, with integrated precision shafts out of hardened and ground steel • - 120° grooved bearings with bolt as rollers • - Double sided and single sided rails • - Stainless steel version for rails and rollers available • - Universal usage, suitable for most applications • - Mostly available from stock • - We cut the rails to the desired length • - Loads up to 5kN per roller • - Medium torques up to 2,2kNm (AG system) Advantages • - Dry operation, lifetime lubricated and sealed rollers • - No lubrication of the rails necessary • - Very low feed force due to point load of 120° angle shaped roller on the round guide shaft • - Rails suitable for continuous mounting • - Centric and eccentric rollers allow adjustment of precision or smooth movement of the system • - Support rollers are available for long, parallel, single rail systems with fixed and floating side
