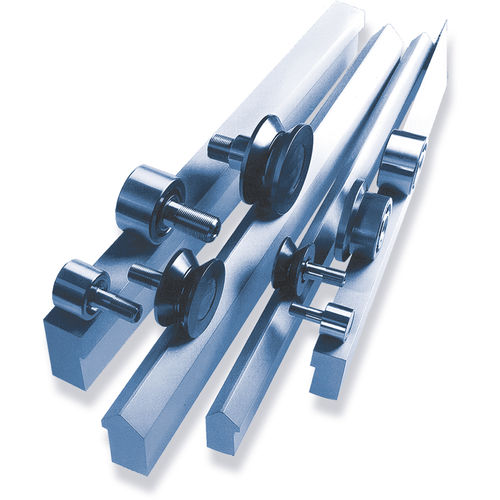

Roller linear guide

steelprecisionfor heavy loads

• - Suitable for precise handling of very heavy loads under difficult conditions • - Rollers with ground, hardened surfaces 55-60HRC • - Rails with inductive hardened running surfaces 55-60HRC (standard), or alternatively 38HRC • - Standard sizes with metric diameters; imperial-inch measured rollers on request • - Variable options for mounting the rails Advantages • - Rollers with tapered roller bearings / special ball bearings for high radial and axial loads • - Puncture-proof roller journals are suitable for self-supporting installations • - Lubrication-free system: rails do not need to be lubricated or oiled • - Sealed rollers with lifetime lubrication: re-lubrication is optional • - No maintenance required from -34°C to +107°C • - Special greases and special seals for high temperatures, food applications, etc. are available on request • - Self-cleaning guide rails TTV and TPV: inconjunction with guide rollers • - Rails are suitable for continuous mounting – please specify when ordering Applications • - Long parallel rail systems can be implemented by combining guide rails with guide rollers at the fixed bearing side and support rails with support rollers at the floating bearing side • - Gantrycranes, storage, agribusiness, steel, wood / paperindustry, assemblylines, bulk conveyorbelts (for sand, gravel or crushed rocks), waste disposal, amusement park rides, canal locks, ship building
