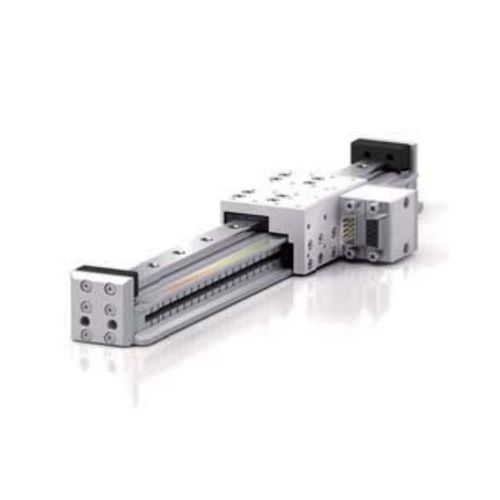

Slide linear guide CLS series

aluminumcompacthigh-precision

Compared to traditional ball screw modules, the drive coupled CLS series provides superior precision and velocity under many thrust output conditions. The highly integrated model design also enables a much increased productivity and reliability as compared to the accuracy and speed limitations of traditional ball screw systems. High rigidityƱ Compact Structure CLS integrates the base with the stator to utilize a wide-type linear guide to move its aluminum slider, sporting also an additional optical scale for enhanced position feedback. The module achieves both a high degree of compactness and rigidity, providing our customers with an optimal choice to satisfy their varying thrust requirements Lightweight ƱHigh velocity and Acceleration The linear motor used in this product is of the ironless type, which combined with its aluminum slider, enables a lightening of motion loads. This enables a high velocity, acceleration and deceleration rate. The unique no clogging force feature of the ironless linear motor enables it to achieve a high stability and low velocity ripple motion, even under very slow motions. CLS can contain multiple sliders on the same axis, each individually controllable. CLS modules can be customized for specific customer applications. Options include: Mounting hole positions, cable outlet types, linear guide models, weight reduction and specific travel range customization
