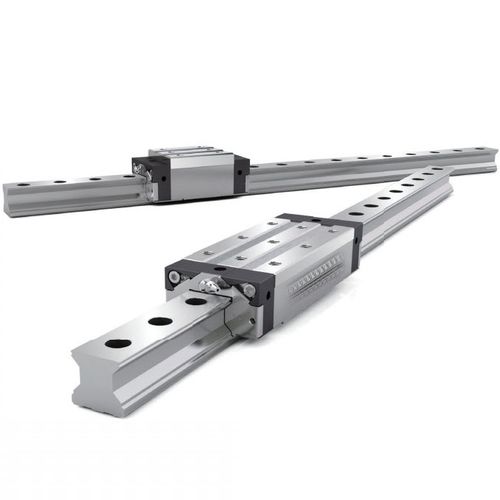

Roller linear guide ARR/HRR/LRR series

steelcompactfor machine tools

LRR Extremely Low Profile Type Suitable for conditions where a lower external torque and inertial force is required. this product combines a low height and center of gravity to provide a more compact product. ARR, HRR and LRRs blocks ail share the same rail with a similar load capacity and service life. MXL Ultra Long Block Type Compared to the industry’s ML lengthened block. the MXL model's much lengthened block features a greater load, rigidity and shock réduction capability. This makes this model most suitable for machine tools that require super high rigidity and accuracy. Accuracy The ARR/HRR/LRR linear guides provide 4 différent grades of précision : H, P. SP, and UP, Engineers can choose différent grades depending on the machine applications. Low Noise Roller Chain (Optional) Our Bail chain design effectively lowers high frequency noise volumes while sliding and enhancing smoothness. Additionaly, the bal chdn spacer between steel rollefs continuously replenishes the oil film cladding to maintain a better lubrication effect. Full Cover Seal (Standard Feature) Ail model type are equipped with an "end seal", "bottom seal", and 'Inner seaT to effectively prevent foreign objects from sliding into the block or lubrication from leaking out. (For more information please refer to page 03J
