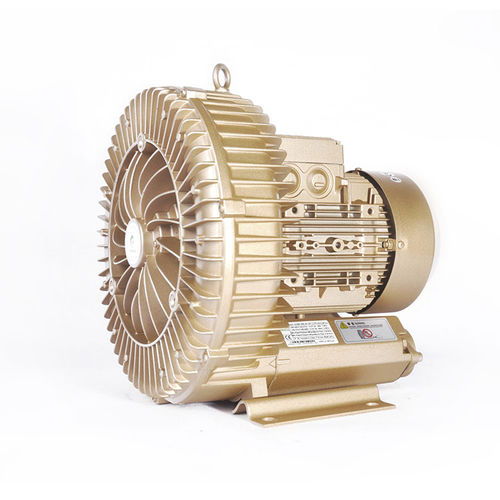

Side-channel blower GHBH 0D5 34 AR2airgassingle-stage
Add to favorites
Compare this product
Characteristics
- Type
- air, gas
- Technology
- side-channel
- Number of stages
- single-stage
- Applications
- for vacuum, conveying, regenerative, drying, for food applications, suction, HVAC
- Voltage / frequency
- 220 V / 50 Hz, 220 v / 60 Hz, 380 v / 50 Hz, 380 v / 60 Hz
- Other characteristics
- oil-free, aluminum, compact, direct-drive, three-phase
- Flow
105 m³/h, 120 m³/h
(3,708.04 ft³/h, 4,237.76 ft³/h)- Operating pressure
Max.: 160 mbar
(2.321 psi)Min.: -150 mbar
(-2.176 psi)- Nominal power
0.4 kW, 0.5 kW
(0.544 hp, 0.68 hp)- Sound level
54 dB, 57 dB
- Weight
10 kg
(22.05 lb)
Description
Specification：
Phase: Three
Frequency:50/60 (Hz)
Rated Power:0.4/0.5 (kW)
Rated Voltage: 220-240△345-415Y | 220-275△380-480Y (V)
Rated Current:3.8△/2.2Y | 3.75△/2.15Y (A)
Max AirFlow: 105/120 (m3/h)
Max Vacuum:-120/-150 (mbar)
Max Pressure:130/160 (mbar)
Sound: 54 dB(A)
Weight: 10 (kg)
Why choose GOORUI blower?
High efficiency motor；
IP55 & Insulation class H；
Built-in Thermal Protector(PTC)；
High Temperature-Resistance bearing；
Special customized blower and OEM available；
24 months warranty and long-term technical support；
CCC, CE, SGS, TUV, RoHS, ISO9001 certification approved.
