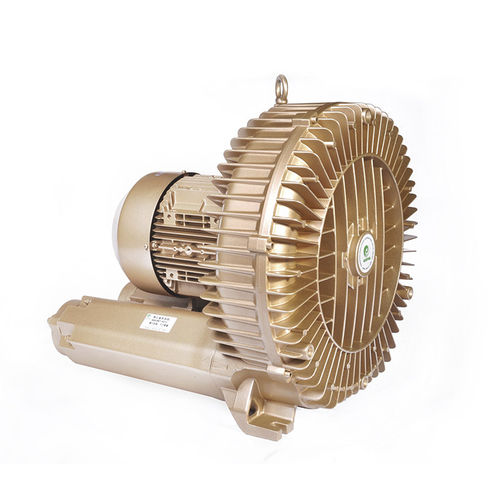

Side-channel blower GHBH 001 34 AR3
airsingle-stageregenerative

Side-channel blower - GHBH 001 34 AR3 - Dongguan Foersheng Intelligent M&E Co,.Ltd. - air / single-stage / regenerative
Side-channel blower - GHBH 001 34 AR3 - Dongguan Foersheng Intelligent M&E Co,.Ltd. - air / single-stage / regenerative
Side-channel blower - GHBH 001 34 AR3 - Dongguan Foersheng Intelligent M&E Co,.Ltd. - air / single-stage / regenerative - image - 2
Side-channel blower - GHBH 001 34 AR3 - Dongguan Foersheng Intelligent M&E Co,.Ltd. - air / single-stage / regenerative - image - 3
Add to favorites
Compare this product

Characteristics

Type
air
Technology
side-channel
Number of stages
single-stage
Applications
regenerative
Voltage / frequency
220 V / 50 Hz, 220 v / 60 Hz, 380 v / 50 Hz, 380 v / 60 Hz
Other characteristics
three-phase
Flow

140 m³/h, 165 m³/h
(4,944.053 ft³/h, 5,826.92 ft³/h)

Operating pressure

Min.: -110 mbar
(-1.595 psi)

Max.: 100 mbar
(1.45 psi)

Nominal power

0.7 kW, 0.83 kW
(0.952 hp, 1.128 hp)

Sound level

56 dB, 58 dB

Weight

14 kg
(30.86 lb)

Description

Frequency: 50(Hz) Rated Power: 0.7 (kW) Rated Voltage: 200-240/345-415 (V) Rated Current: 3.8 (A) Max Airflow: 140 (m3/h) Max Vacuum:-100 (mbar) Rated Pressure:100 (mbar) Sound:56 dB(A) Weight:14 (kg) Why choose GOORUI blower? High efficiency motor； IP55 & Insulation class H； Built-in Thermal Protector(PTC)； High Temperature-Resistance bearing； Special customized blower and OEM available； 24 months warranty and long-term technical support； CCC, CE, SGS, TUV, RoHS, ISO9001 certification approved.
