Flush handle ERB-PF

machinesnap-in assemblybi-directional

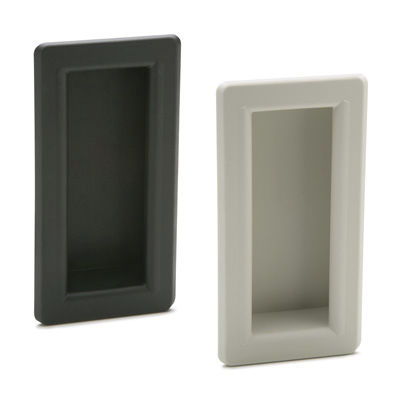

STANDARD EXECUTIONS - ERB-PF: glass-fibre reinforced polyamide based (PA) technopolymer grey-black colour, matte finish. - ERB-PF-CLEAN: glass-fibre reinforced polyamide based (PA) technopolymer white colour similar to RAL 9002, matte finish. FEATURES AND APPLICATIONS ERB-PF bi-directional flush pull handles are suitable to open and close sliding doors. The ergonomy of the cavity offers a safe and comfortable grip. ERB-CLEAN in white colour is suitable for applications on medical and hospital equipment and food processing machines. TECHNICAL DATA The pull out resistance values (F2) reported in the table are the result of laboratory tests carried out with the handle assembled on a panel with a thickness of 1.5 mm, stiffened for testing purposes. ASSEMBLY INSTRUCTIONS 1. Drill the handle housing according to the template dimensions. 2. Remove all drilling burrs before fitting the handle. 3. Fit the side of the handle with fixed toothing into the housing (Fig. 1). 4. Press onto the opposite side (elastic toothing) until the handle is completely snapped in (Fig. 2).
