24 Vdc electromechanical relay SIS422 SEN12 Vdc6VDC48VDC
Add to favorites
Compare this product
Characteristics
- Control voltage
- 24 Vdc, 12 Vdc, 6VDC, 48VDC, 5 VDC, 3VDC, 60VDC, 9VDC
- Contact configuration
- 4 NO, 2 NC
- Features
- compact
- Mounting
- for printed circuit boards
- Function
- power, interface
- Terminal strip
- weld-on
- Other characteristics
- with guided contacts, IEC
- Switching current
Max.: 6,000 mA
Min.: 3 mA
Description

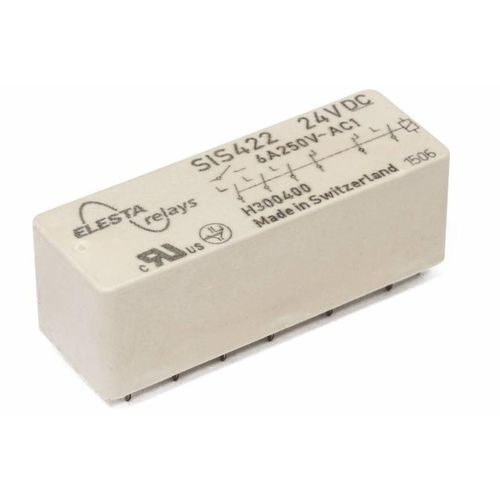

The SIS 422 SEN is a six-pole relay with forcibly guided contacts to IEC 61810-3 in a very compact design. In addition to the small dimensions the relay impresses with high shock resistance a large excitation voltage range low coil power loss and high switching reliability due to the notched crown contact.
Switching current: 3mA - 6A
Nominal coil power: 440mW
Test voltage (rms): 4000V
The following product variants are available in the ELESTA shop:
• Coil Voltage: 12 VDC
• Coil Voltage: 24 VDC
