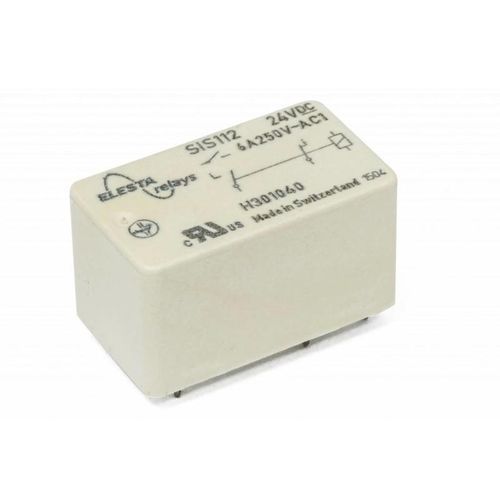

Electromechanical relay with guided contacts SIS112 SEN24 Vdc12 Vdc48VDC
Add to favorites
Compare this product
Characteristics
- Control voltage
- 24 Vdc, 12 Vdc, 48VDC, 3VDC, 60VDC, 9VDC
- Contact configuration
- 1 NO, 1 NC
- Features
- compact
- Mounting
- for printed circuit boards
- Function
- power, interface
- Terminal strip
- weld-on
- Other characteristics
- with guided contacts, IEC
- Switching current
Min.: 3 mA
Max.: 6,000 mA
Description
The two-pole relay of the SIS 2 SEN series with forcibly guided contacts according to IEC 61810-3 in a very compact design. A particular advantage is the minimum power consumption of the relay coil. (nominal power 200 mW and holding power 40 mW). In addition to the very small dimensions, the relay series impresses with high shock resistance, a large excitation voltage range, very low self-heating as well as high contact reliability due to the proven notched crown contact.
Switching current: 3mA - 6A
Nominal coil power: 200mW
Test voltage (eff): 5000V
The following product variants are available in the ELESTA shop:
• Coil Voltage: 12 VDC
• Coil Voltage: 24 VDC
