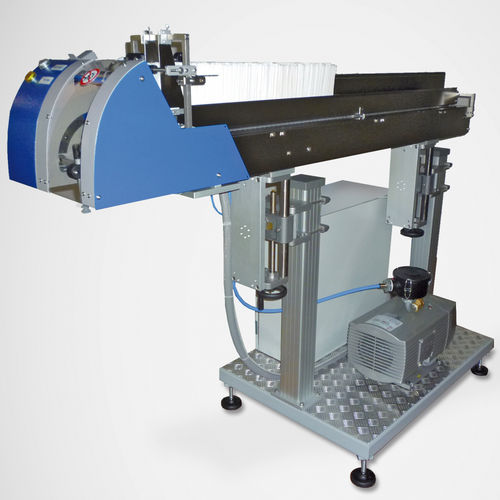

Automatic pick-and-place machine CLIPPY BIG

sachetflat cartonsvacuum

High autonomy pick and place device features a horizontal loading stack 1500 mm for higher productivity and placing of flowpack sachets, 2, 3 and 4 sides sachet, CDs, flat cartons and cards made of non-porous materials   The placer Clippy Big is a pick and place machine equipped with vacuum pads that pick products from a loading stack and place them horizontally on a packaging line. The placer has a high autonomy loading stack to dispense flowpack sachets, 2, 3 and 4 side sachets, coupons, cards and flat boxes made of non-porous materials.  The programming keyboard will allow to set speed and control functions in a user-friendly way: automatic speed adjustment, multiple product distribution, control of missing picking with automatic stop. • High autonomy loading stack 1500 mm long with independent motor • Mechanical device with vacuum pad for horizontal positioning • Control on missing picking • Venturi vacuum pump • Safeguards on kinematic • Separate control box (remote terminal up to 3 m) with integrated PLC • Separate control panel  (remote up to  3 m) • Brushless motor • Start for product picking and placing • Control on minimum load • Encoder • Programming keyboard • Vacuum pump (according to products)
