Rotary union for fiber optic
30 Gbit/s, 2000 rpm, IP 65 | Rotoray®
GAT
Product features
- Very low insertion loss
- Extremely robust design
- Optical performance insensitive to temperature changes
- Single Mode or Multi Mode version available
- Data transmission rates up to 30 Gbit/s
- Immune against EMP and ESD
- Easily upgradeable to multichannel system
Design and function

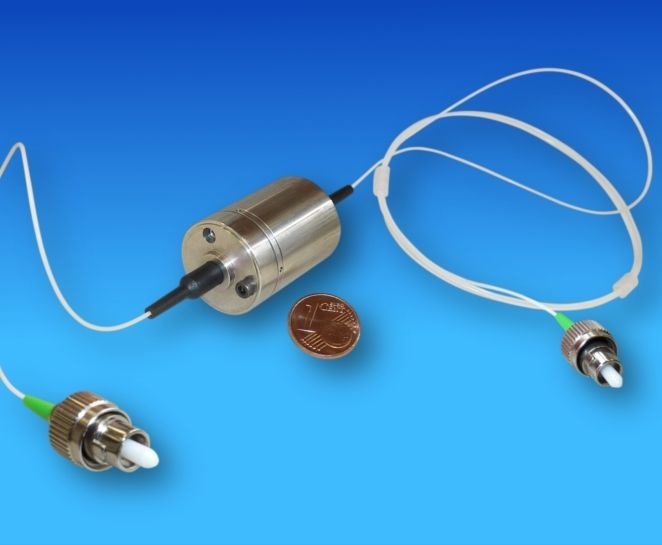

Our Fiber Optical Rotary Union (FORU) Rotoray® supports contactless
high speed bi-directional data transmission through a single fiber between a stationary and a rotating part. It is available for single- and multimode glass fibers. The core technology of this device is a wave length optimized micro lens collimator and high precision bearing system. Our new developed ultra precise alignment process and innovative technology of positioning the optical components results in outstanding optical efficiency. The robust stainless steel design insures nearly unchanged insertion loss even under severe temperature or vibration conditions. The compact
stainless steel housing is dust and water tight and made for harsh environment applications. The whole unit is maintenance-free. This FORU is a passive device that will work with any data transmission protocol and can be used for highest data rates up to 30 Gbit/s. The fiber connectors are usually FC/PC or FC/APC, but others are available as well.
