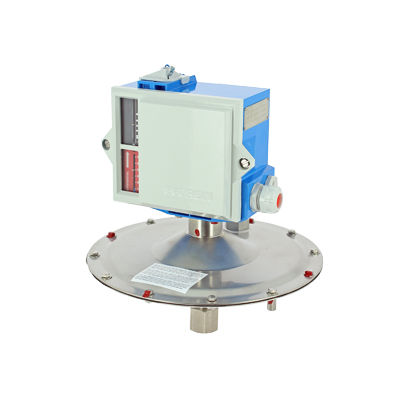

Diaphragm pressure switch P
Bourdon tubedifferentialrelative

diaphragm pressure switch
diaphragm pressure switch
diaphragm pressure switch
diaphragm pressure switch
diaphragm pressure switch
Add to favorites
Compare this product

Go to the GEORGIN S.A. website for more information

Characteristics

Technology
diaphragm, Bourdon tube
Pressure type
differential, relative, absolute
Contact type
SPDT
Material
stainless steel
Protection level
explosion-proof, intrinsically safe
Applications
for pneumatic applications
Other characteristics
increased safety
Pressure range

Max.: 1,000 bar
(14,503.77 psi)

Min.: -1 bar
(-14.5 psi)

Process temperature

Max.: 600 °C
(1,112 °F)

Min.: -50 °C
(-58 °F)

Description

Version: relative, differential, absolute pressure Case: Zamak Switches : 1 or 2 change over (SPDT) Ranges: » From 0 to 90 bar (differential pressure) Sensing element: » Bronze or stainless steel bellows » NBR, FKM or EPDM diaphragm » Stainless steel bourdon tube Options: » Pneumatic switches » Intrinsic Safety » explosion-proof housing » Increased safety housing » GOST certificate » VERITAS certificate Characteristics Gauge, absolute or differential pressure control Temperature control:direct bulb or through capillary Electrical contact or pneumatic signal output Protection for areas involving an explosion risk (ATEX) Explosion-proof enclosure Intrinsic safety Increased safety Explosion-proof contact Protection of pressure equipment against exceeding allowable limits (PED) Pressure Temperature
