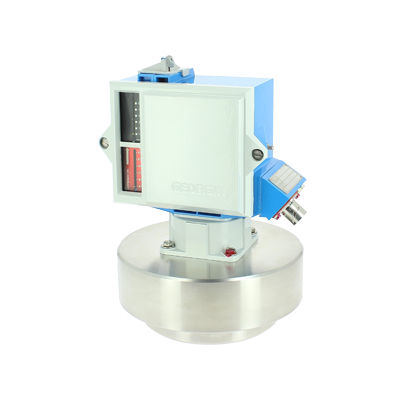

Bourdon tube pressure switch P
diaphragmrelativeabsolute

Bourdon tube pressure switch
Bourdon tube pressure switch
Add to favorites
Compare this product


Characteristics

Technology
diaphragm, Bourdon tube
Pressure type
differential, relative, absolute
Contact type
SPDT
Material
stainless steel
Protection level
explosion-proof, intrinsically safe
Other characteristics
increased safety
Process temperature

Min.: -90 °C (-130 °F)

Max.: 600 °C (1,112 °F)

Pressure range

Min.: -1 bar (-14.5 psi)

Max.: 1,000 bar (14,503.77 psi)

Description

Version: relative, differential, absolute pressure Ranges: » From 0 to 90 bar (differential pressure) Case: Zamak Sensing element: » Stainless steel bellows » NBR or EPDM diaphragm » Stainless steel bourdon tube Switches : 1 or 2 Nitrogen sealed change over (SPDT) Features: » 40° descending angle electrical output » Electrical connection: Quick connector plug (SOURIAU = K3 Parc or SAIB= EPR) » Long term packaging (GARDAC® type) Options: » Intrinsic Safety » explosion-proof housing » Increased safety housing Certificates : » GOST certificate » EDF K3 / K3ad qualification » Manufactured in compliance with the RCCE 2005 standards
