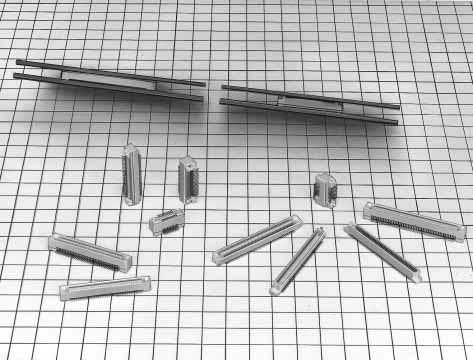

Data connector FX6 Seriesboard-to-boardIDESMT
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- IDE, SMT, board-to-board
- Shape
- parallel
- Material
- lead
- Product applications
- board, guide
- Domain
- automatic
- Primary current
0.5 A
- Voltage
100 V
- Pitch
0.8 mm
(0.031 in)- Operating temperature
Max.: 85 °C
(185 °F)Min.: -55 °C
(-67 °F)
Description
0.8mm Pitch Stacking Height 5 to 9mm Connector
1. Stacking Height 5 to 9mm
2. Effective Contact Length 1.7mm
3. Mating Guide
The self-alignment for mating action exhibits a high guide level at ±1mm.
4. Automatic Mounting
5. SMT Coplanarity
The lead coplanarity on the SMT soldered area is maintained with the high accuracy of less than 0.1mm.
