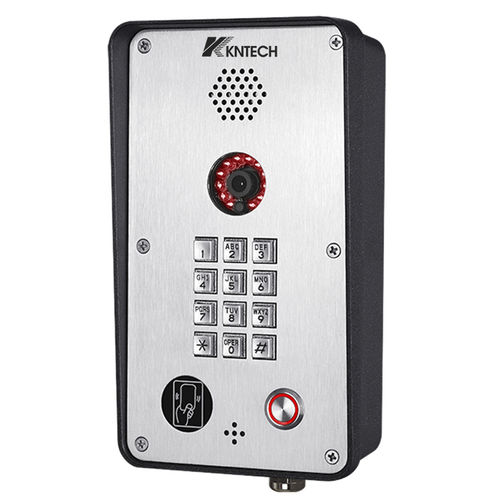

KNZD-52V Video RFID doorphone
Robust aluminium alloy die-cast body stainless steel face plate
Supper good sound clarity during conversation
Support standard Session Initiation Protocol(SIP), RFC 3261
Remote software upgrade, configuration and mornitoring
Power over Ethernet(PoE,802.3af), local 12V DC
IP66 vandal resistant marine grade stainless steel faceplate
LED indicator
Echo cancellation
Password, RFID card, Video, Remote program
Operating Temperature: -40°F to +158°F/ -40℃ to +70℃
Relative Humidity Up to 95% non-condensing
IP66, vandal-resistant and water-resistant design
Communication: Full duplex 2-way hands-free communication
Call Control SignalingSIP(RFC compliant), SIP Info(DTMF), RFC 2833(DTMF)
Audio Codes G.711, G.722, G.729
Camera Image Sensor OV9712
Total Pixels 480P 15fps
Min. illumination 0.1lux
Field of view 150° horizontal Opposite angles 170°
Lens 2.75mm
Framerate 15fps, 30fps, MJPEG, H.264
Streamine Dual-stream at different frame rate and bandwidth
ONVIF compliant Yes
Network 10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better
IP Protocols IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP
LAN Protocols Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE 802.1x),STP(IEEE 802.1d), RSTP(IEEE 802.1d-2004)
