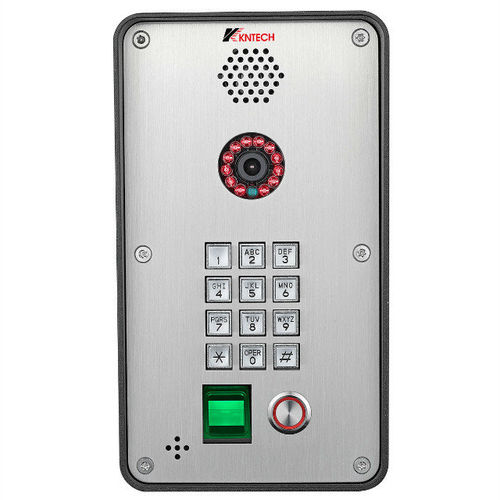

Video door phone KNZD-58V

access controlvandal-proofrugged

Robust IP INTERCOM *Supper good sound clarity during conversation *Support standard Session Initiation Protocol(SIP), RFC 3261 *Remote software upgrade, configuration and mornitoring *Power over Ethernet(PoE,802.3af), local 12V DC *IP66 vandal resistant marine grade stainless steel faceplate *LED indicator *Echo cancellation *Password, fingerprint, Video, Remote program ConstructionRobust aluminium alloy die-cast body stainless steel face plate Operating Temperature: -40°F to +158°F/ -40℃ to +70℃ Relative Humidity: Up to 95% non-condensing Protection: IP66, vandal-resistant and water-resistant design Communication: Full duplex 2-way hands-free communication Call Control SignalingSIP(RFC compliant), SIP Info(DTMF), RFC 2833(DTMF) Audio Codes: G.711, G.722, G.729 Cameramage Sensor: OV9712 Total Pixels: 480P 15fps Min. illumination: 0.1lux Field of view: 150° horizontal Opposite angles 170° Lens: 2.75mm Framerate: 15fps, 30fps, MJPEG, H.264 Streamine: Dual-stream at different frame rate and bandwidth ONVIF compliant: Yes Rated carry current:1A Max.switching voltage:125 VAC,60VDC Max.switching current:1A Network: 10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better IP Protocols: IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP LAN Protocols: Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE802.1x), STP(IEEE 802.1d), RSTP(IEEE 802.1d-2004) Programming: Non-volatile flash memory programming and configuration through Web GUI Management and Operation: DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED Echo cancellation code: G.167/G.168
