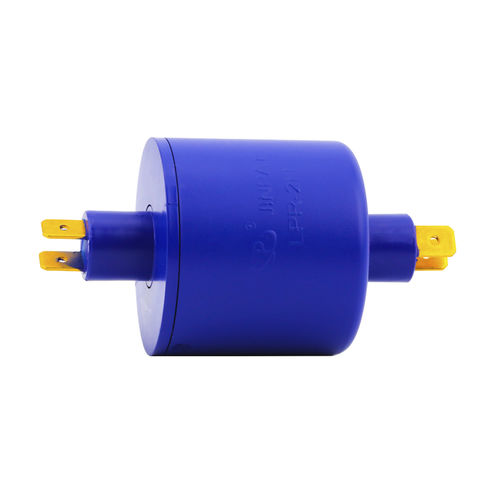

Electric slip ring LPR-2380V AC/DCenvironment-friendly
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Other characteristics
- 380V AC/DC, environment-friendly
- Voltage
380 V
- Primary current
25 A
- Rotational speed
300 rpm
(1,885 rad.min-1)- Number of channels
2 unit
Description
Part Number: LPR-2H
2circuits
Current range: 2circuits*25A;
Voltage of 240VAC; Dielectric Strength ≥500VAC@50Hz between circuits;
Insulation of 100MΩ@500VDC; Electrical Noise: ≤70mΩ
Operating Speed:0~100rpm;
Wire Size: Silver plated pin; Wire Length: stator (4m), rotor(4m);
Contact: Precious metal; Housing: Engineering plastic
Working Temperature: -20°C~+80°C; Up to 60%RH; IP54(rotor upwards)
