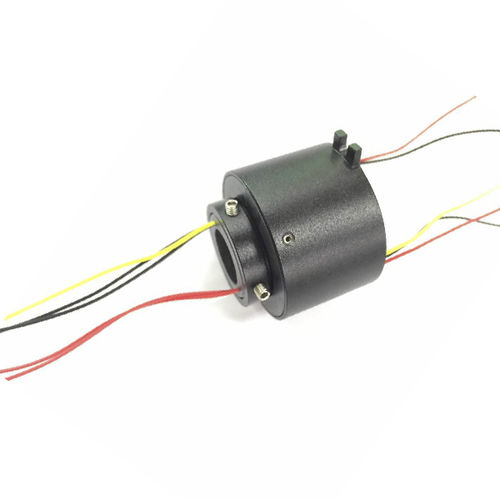

through-bore slip ring / high-speed
LPT-012B JINPAT Electronics Co., Ltd.

Add to MyDirectIndustry favorites
through-bore slip ring / high-speed through-bore slip ring / high-speed - LPT-012B
{{requestButtons}}

Characteristics

  • Construction:

    through-bore

  • Other characteristics:

    high-speed

  • Rotational speed:

    500 rpm (3,142 rad.min-1)

  • Current:

    Min.: 2 A

    Max.: 10 A

  • Voltage:

    380 V

  • Number of contacts:

    Min.: 1 unit

    Max.: 24 unit

Description

Part Number: LPT012B

12 circuits

Current Range: 12 circuits*2A; Voltage of 380VDC;
Dielectric Strength: ≥1000V@50Hz between circuits; Insulation: 1000MΩ@500VDC;
Electrical Noise: min 1mΩ;

Operating Speed:0~2000rpm; Wire Size: AWG26 Silver Plated Teflon UL;
Wire Length: stator (300mm), rotor(300mm);
Contact: Gold to gold; Housing: Aluminum alloy;
Low Torque: ≤9.25 g.m; Inner Diameter: φ12.7mm;

Working Temperature: -20°C~+60°C; Up to 60%RH; IP54;

Life: 50 million turns;
